High and Low Voltage Busway System: Fully Insulated Power Distribution for Modern Infrastructure

Modern power infrastructure must deliver large amounts of electricity safely, efficiently, and continuously. Power plants, substations, industrial facilities, commercial buildings, data centers, wind farms, and transportation projects all require dependable conductors between generators, transformers, switchgear, distribution equipment, and final loads. Traditional cable systems remain useful in many applications, but they can become difficult to install, inspect, expand, and protect when current levels are high or when the installation environment is crowded and demanding.

The High and Low Voltage Busway System provides an integrated alternative for these applications. It is a prefabricated busbar distribution solution that uses enclosed conductors to transmit electrical power between key points in a power system. Its shared-enclosure structure brings the conductors and protective housing together in a compact assembly, while its fully insulated design provides an additional barrier against accidental contact, environmental contamination, and phase-to-phase faults.

The system is suitable for high-voltage and low-voltage power distribution requirements, with the final configuration determined by the rated voltage, current, insulation method, conductor material, environmental conditions, installation layout, and applicable project standards. It can be designed for power source-side distribution, transformer connections, industrial substations, plant expansion, large commercial facilities, and other high-current applications.

Jiangsu Wopeng Power Technology Co., Ltd. specializes in the development and manufacture of high- and low-voltage busbar systems. Its product portfolio covers epoxy resin vacuum-cast tubular busbars rated up to 35 kV, low-voltage cast-resin busways, copper and aluminum tubular busbars, wind power tubular busbars, compact busbar systems, and sliding contact line systems. Through engineering expertise, modern manufacturing equipment, standardized testing, and project-oriented technical support, the company provides customized solutions for demanding power transmission applications.

1. What Is a High and Low Voltage Busway System?

A busway system, also called a bus duct or busbar trunking system, is a prefabricated electrical distribution assembly containing one or more busbars inside a protective enclosure. The busbars carry electrical current, while the enclosure provides mechanical protection, electrical separation, grounding continuity, and environmental shielding. Compared with separately installed cables, a busway is engineered as a coordinated system rather than as a collection of individual conductors and accessories.

The term “high and low voltage busway system” refers to a product family capable of addressing different voltage classes within power generation, transmission, distribution, and utilization networks. High-voltage sections are commonly used in power plants, substations, wind farms, and heavy industrial facilities. Low-voltage sections are frequently used for building distribution, motor control, industrial production lines, data centers, and large electrical rooms.

High-voltage and low-voltage busways differ in insulation requirements, clearances, test levels, enclosure design, connection methods, and application conditions. A high-voltage busway may use epoxy insulation, vacuum-cast resin, gas insulation, or another engineered insulation system. A low-voltage busway may use cast resin, molded insulation, laminated insulation, or compact sandwich construction. In every case, the system must be designed according to the operating voltage, rated current, short-circuit withstand requirement, heat dissipation conditions, and installation environment.

The product described here uses a shared-enclosure structure. Multiple conductors are arranged in a controlled configuration within a common housing instead of being installed as widely separated cable circuits. This design reduces the overall footprint and supports centralized protection and management. It is particularly valuable where a project has limited space, a complex retrofit route, or a requirement for fast and organized installation.

Item	High-Voltage Busway	Low-Voltage Busway
Typical operating class	Above 1 kV, with project ratings commonly extending into medium-voltage ranges	Up to and including 1 kV
Typical applications	Power plants, substations, wind farms, heavy industry, and transformer connections	Commercial buildings, data centers, factories, motor distribution, and building services
Insulation requirements	High dielectric strength, controlled clearances, and specialized insulation systems	Compact insulation systems appropriate for low-voltage distribution
Common conductor materials	Copper or aluminum, selected according to current and project requirements	Copper or aluminum, selected according to current, voltage drop, and cost targets
Connection requirements	Engineered joints with strict insulation, mechanical, and electrical verification	Modular joints, plug-in units, or bolted connections according to system design

The table provides a general comparison only. Actual specifications must be determined through a project-specific electrical design process. Voltage classification, fault current, installation altitude, temperature, humidity, pollution level, seismic conditions, and local regulations may all influence the final product configuration.

2. Shared-Enclosure Design and Fully Insulated Construction

The shared-enclosure structure is one of the defining characteristics of this busway system. Instead of relying on separate cable routes or individually supported conductors, the system places the busbars inside a coordinated housing. The arrangement allows the conductors, insulation, joints, support components, and enclosure to function as one engineered assembly.

A common enclosure offers several practical advantages. It uses installation space efficiently, supports a neat and predictable route, reduces the number of separate support structures, and simplifies the coordination of connected equipment. In a retrofit project, where existing buildings and plant equipment restrict available space, this compact structure can make the difference between a straightforward installation and a major civil or electrical modification.

The enclosure also supports centralized protection. Instead of exposing separate cable surfaces to dust, moisture, tools, impact, and accidental contact, the conductors remain inside a controlled protective environment. When properly sealed and grounded, the enclosure can help protect the internal system against external contamination and provide a defined path for fault currents.

Fully insulated construction adds another important level of safety. The conductors are surrounded by engineered insulating material or an insulated medium, which reduces the probability of direct contact and limits the possibility of phase-to-phase faults caused by external objects or contamination. Insulation also helps maintain stable electrical characteristics along the busway route when the system is properly designed, manufactured, installed, and tested.

For high-voltage versions, epoxy resin vacuum casting is one possible insulation technology. In this process, the conductor assembly is placed within a mold and encapsulated using formulated resin under controlled vacuum conditions. Vacuum processing helps reduce voids and improves the uniformity of the insulation body. The resulting solid-insulated component can provide mechanical support, environmental protection, and dielectric strength in a single integrated structure.

For other configurations, the system may use tubular conductors, profiled copper bars, cast-resin insulation, or gas-insulated construction. The specific material and structure should be selected according to voltage level, current rating, thermal requirements, installation environment, maintenance expectations, and project cost. The key principle is that the insulation system is designed as an integral part of the busway rather than added as an afterthought.

3. Main Applications

3.1 Power Plants and Main Transformer Connections

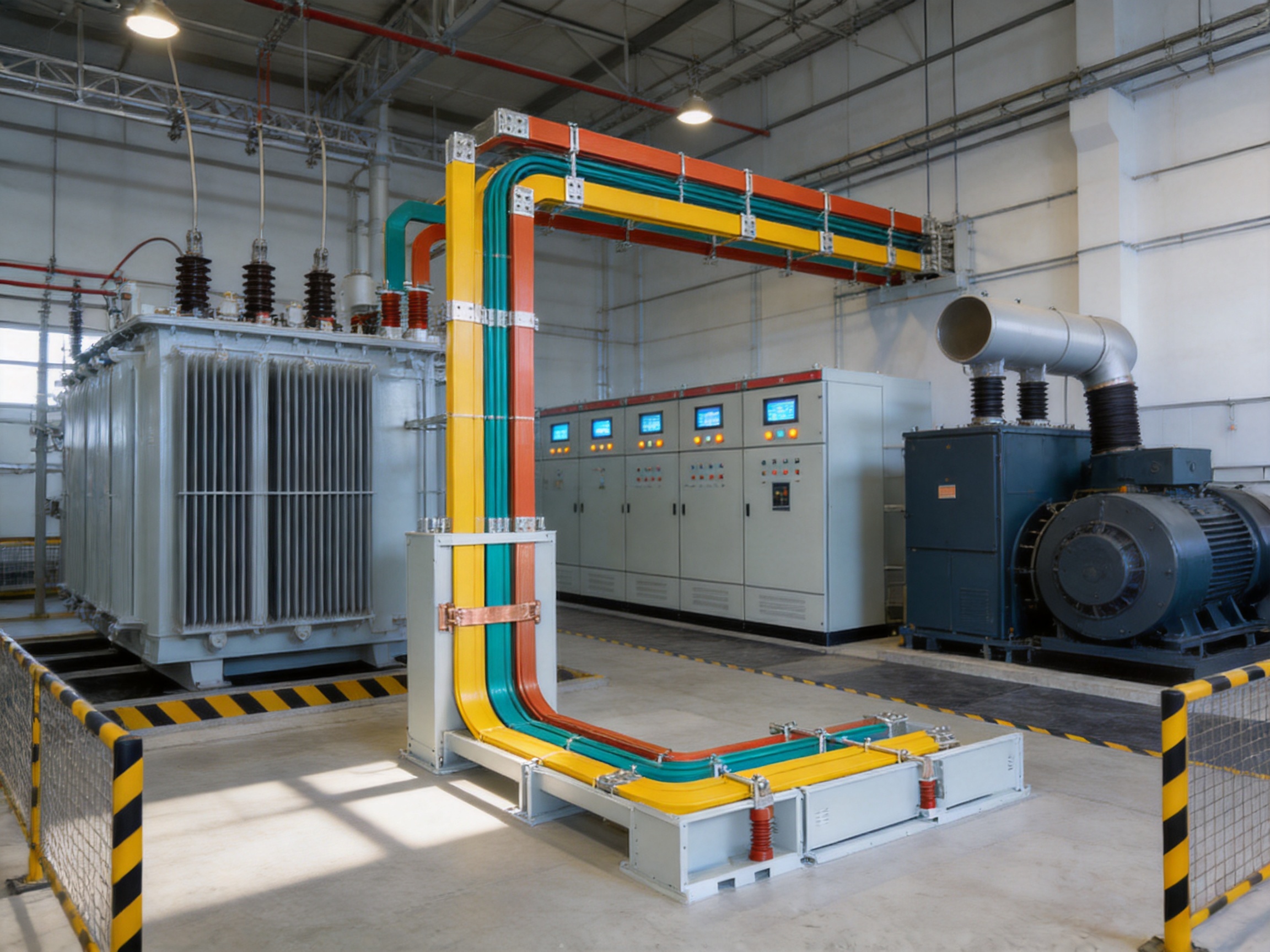

Power plants require reliable connections between generators, transformers, switchgear, auxiliary systems, and outgoing distribution equipment. These connections often carry high currents and must operate continuously under thermal, electrical, and environmental stress. A busway system can provide a compact and controlled route between the low-voltage side of a main transformer and the associated switchgear or distribution board.

In this type of application, the busway must be coordinated with the transformer terminals, switchgear dimensions, protection scheme, grounding system, and available space. A prefabricated system reduces uncertainty during installation because the route, joints, and interfaces are prepared according to approved engineering drawings. This is especially valuable in projects where outage time is limited and commissioning schedules are strict.

3.2 Wind Farms and Renewable Energy Facilities

Wind power facilities often combine electrical equipment, exposed outdoor locations, long cable routes, compact transformer stations, and challenging weather conditions. Tubular busbars and fully insulated busway systems can be used in transformer connections, collection systems, converter interfaces, and other high-current sections, subject to the voltage and system design.

Wind farm renovation projects may have additional constraints because the existing foundations, transformer positions, switchgear, and cable routes must often be retained. The compact shared-enclosure design can support replacement or upgrading work in restricted spaces. Factory-manufactured sections also help reduce the amount of field fabrication required at remote sites, where access to specialized tools and skilled installation labor may be limited.

3.3 Industrial Substations

Industrial substations distribute power from incoming feeders to production lines, motor control centers, furnaces, compressors, pumps, and other heavy loads. A busway can connect equipment at different voltage levels and provide a standardized path between transformers and distribution assemblies.

Industrial environments may include dust, humidity, vibration, chemical exposure, temperature variation, and frequent equipment changes. The sealed enclosure and fully insulated construction help reduce exposure of live conductors to these conditions. The modular layout also supports planned expansion, allowing additional sections or connection points to be incorporated when the electrical demand increases.

3.4 Commercial Buildings and Large Facilities

Low-voltage busways are widely used for vertical and horizontal distribution in high-rise buildings, shopping centers, office complexes, hospitals, airports, and other large facilities. Compared with a large group of parallel cables, a compact busway can occupy less shaft or ceiling space and provide a more organized route.

Where regular tap-off points are required, a modular busway can support flexible distribution to lighting, air-conditioning equipment, pumps, elevators, tenant areas, and other loads. The final design may include plug-in units, feeder connection boxes, or other accessories selected according to the required current and protection arrangement.

3.5 Data Centers and Critical Infrastructure

Data centers require high availability, controlled installation practices, and the ability to rearrange equipment as information technology requirements change. Overhead low-voltage busways can supply server racks and other equipment while maintaining a clean and accessible floor layout.

A modular distribution system can simplify future reconfiguration. New tap-off units may be added at approved locations, and equipment may be moved without rebuilding the entire power route. For critical facilities, the busway must be integrated with redundancy, monitoring, protective coordination, grounding, fire safety, and maintenance procedures.

3.6 Rail Transit and Specialized Industrial Equipment

Rail transit facilities, manufacturing plants, logistics centers, and specialized production sites often contain long equipment lines and concentrated electrical loads. The busway system can provide a stable power distribution route where traditional cabling would require extensive trays, supports, and termination work.

In these applications, the system must be coordinated with mechanical movement, access clearances, vibration, electromagnetic compatibility, emergency systems, and maintenance routes. A customized product approach allows the conductor material, enclosure configuration, connection points, and mounting arrangement to be adjusted for the facility.

4. Technical Advantages Over Conventional Cable Distribution

4.1 Efficient Use of Space

Large-current cable installations may require multiple parallel cables for each phase, separate supports, bending clearances, and additional space for termination. As current increases, cable routes can become wide, heavy, and difficult to manage. A busway integrates the conductors into a compact assembly and can reduce the space required for the power route.

The space advantage is particularly important in transformer rooms, electrical shafts, industrial substations, and retrofit projects. A smaller route may reduce building modifications and simplify coordination with ventilation, fire protection, process equipment, and access walkways.

4.2 Improved Installation Efficiency

Busway sections are manufactured according to project drawings and delivered as coordinated components. This factory-prefabricated approach reduces on-site cutting, stripping, joint preparation, and cable arrangement. Installation teams can position the sections, connect approved joints, mount accessories, and perform the required inspections according to the installation instructions.

Reduced field fabrication can shorten the construction schedule and lower the risk of inconsistent workmanship. It can also make quality control more visible because the product configuration, dimensions, and connection points are established before delivery.

4.3 Reduced Phase-to-Phase Fault Risk

In an insulated busway, the conductors are physically separated and surrounded by a designed insulation system. The enclosure further restricts access by foreign objects and helps prevent accidental contact with energized components. This construction fundamentally reduces the risk of phase-to-phase short circuits resulting from conductive dust, tools, moisture, or installation errors.

No electrical system is risk-free. Correct grounding, protection coordination, insulation testing, joint inspection, environmental control, and regular maintenance remain essential. However, the fully insulated structure provides a strong foundation for safe operation when compared with less integrated arrangements that expose more conductors and require numerous independent cable terminations.

4.4 Better Thermal and Current Management

Busway conductors are arranged according to a defined geometry. This allows the manufacturer to calculate current density, heat generation, mutual heating, enclosure effects, and temperature rise as part of the system design. The resulting assembly can offer predictable performance when installed under the specified conditions.

In a cable system, thermal performance may be strongly affected by cable grouping, spacing, tray arrangement, ambient temperature, and installation workmanship. A busway does not eliminate these considerations, but its standardized structure makes them easier to evaluate and control.

4.5 Modular Expansion

Electrical demand often changes after a facility begins operation. Production capacity may increase, new machinery may be installed, or a building may be divided into new functional areas. A modular busway system can make expansion more manageable by using standardized sections, joints, bends, flanges, and connection units.

Expansion must always be planned within the original electrical capacity, protection scheme, short-circuit rating, and thermal limits. Nevertheless, the modular nature of the system offers a significant advantage over fixed cable routes that may require extensive removal and replacement before additional capacity can be added.

4.6 Cleaner Appearance and Easier Route Management

A busway forms a clearly defined electrical route. Its enclosure protects the conductors and produces a consistent appearance in electrical rooms, plant corridors, and building service areas. The organized layout can make it easier for operators and maintenance personnel to identify power routes and connected equipment.

Good route management also supports safety. Clearly labeled sections, accessible joints, defined tap-off locations, and coordinated supports reduce confusion during inspection and maintenance. This advantage becomes more important as a facility grows and contains multiple power distribution systems.

4.7 Lower Routine Maintenance Requirements

Sealed and fully insulated construction can reduce the exposure of conductors and joints to dust, humidity, and accidental impact. Compared with exposed or heavily segmented cable arrangements, the system may require less routine cleaning and fewer interventions, provided that the enclosure remains intact and the joints are correctly installed.

Maintenance still includes visual inspection, checking of enclosure and grounding continuity, examination of joints, thermal scanning where appropriate, insulation testing according to the operating voltage, and verification of protection devices. The objective is not to eliminate maintenance but to make the system more stable and predictable over its service life.

5. Conductor Materials and Insulation Options

5.1 Copper Conductors

Copper provides high electrical conductivity and good mechanical strength. For a specified current, copper conductors can often achieve a compact cross-sectional arrangement. Copper is commonly selected when space is limited, voltage drop must be tightly controlled, or the project requires high mechanical and electrical performance.

The disadvantages of copper include higher material cost and greater weight compared with aluminum. The final decision should consider the complete installed system rather than conductor price alone. Joint design, lifting requirements, support spacing, thermal performance, and long-term operating conditions all affect the suitability of copper.

5.2 Aluminum Conductors

Aluminum is lighter and can provide a cost-effective solution for many high-current systems. Its lower density may reduce transportation, handling, and support requirements. Aluminum tubular busbars and profiled aluminum conductors are therefore attractive for projects where weight and material efficiency are important.

Because aluminum has different electrical, thermal, and mechanical characteristics from copper, the conductor cross-section, joint technology, surface treatment, and connection torque must be carefully engineered. Properly designed aluminum busways can provide reliable service while reducing overall system weight and cost.

5.3 Epoxy Resin Vacuum Casting

Epoxy resin vacuum casting is well suited to solid-insulated tubular busbars and medium-voltage applications. The conductor is encapsulated by a formulated resin system that provides electrical insulation and mechanical support. Vacuum processing helps control air inclusion and promotes a more uniform insulation structure.

The manufacturing process must control resin formulation, mixing, mold preparation, casting temperature, vacuum level, curing conditions, and dimensional accuracy. Inadequate control at any stage can affect dielectric performance, mechanical integrity, or long-term reliability. For this reason, vacuum casting requires specialized equipment, trained operators, and a documented quality-control system.

5.4 Gas-Insulated and Other Configurations

Depending on the project, a busway may use a sealed gas-insulated arrangement or another engineered insulation method. Gas insulation can support compact designs and controlled dielectric performance, but it requires careful sealing, pressure management, leak control, and specialized testing.

The correct insulation technology depends on the voltage level, environmental conditions, maintenance philosophy, installation space, and project standards. A qualified manufacturer should evaluate these factors before recommending a final structure.

6. Advanced Manufacturing Process

The performance of a busway system depends not only on its design but also on the consistency of its manufacturing. Jiangsu Wopeng Power Technology Co., Ltd. operates production lines equipped with vacuum casting systems, CNC machining equipment, and automated assembly technologies. These capabilities support the manufacture of high-voltage tubular busbars, low-voltage cast-resin busways, copper and aluminum tubular products, and customized assemblies.

6.1 Engineering and Product Configuration

Manufacturing begins with engineering review. The product team evaluates the project voltage, current, short-circuit withstand requirement, route geometry, connection interfaces, enclosure dimensions, support locations, environmental conditions, and applicable technical standards.

For customized projects, engineering drawings may include straight sections, elbows, offsets, expansion joints, transformer interfaces, switchgear interfaces, grounding points, inspection provisions, and termination details. Reviewing these requirements before production reduces the risk of dimensional conflicts during installation.

6.2 Material Inspection

Conductor materials, insulation compounds, enclosure metals, fasteners, seals, and accessory components must be inspected before entering production. Material verification may include dimensions, surface condition, electrical properties, mechanical properties, and supplier documentation.

For copper and aluminum conductors, surface quality and dimensional consistency are important because they influence current distribution and joint performance. For resin systems, storage conditions, batch identification, shelf life, and formulation data must be controlled. For metal enclosures, thickness, coating quality, weld condition, and dimensional tolerance require attention.

6.3 CNC Machining and Dimensional Control

CNC machining equipment supports accurate processing of conductor components, connection plates, flanges, support parts, and enclosure sections. Consistent machining improves the fit between mating parts and helps maintain alignment along the busway route.

Dimensional control is especially important at transformer and switchgear interfaces. Even a small error in the position of a connection point can create installation difficulties or mechanical stress. CNC processing, controlled drawings, inspection fixtures, and documented measurement procedures help maintain repeatability from one production batch to the next.

6.4 Vacuum Casting and Curing

For epoxy resin vacuum-cast products, the conductor assembly is prepared and positioned within a mold. The resin is mixed according to a controlled formulation and introduced under vacuum conditions. The casting cycle is managed to reduce voids, ensure complete filling, and achieve consistent insulation thickness.

After casting, the component undergoes a controlled curing process. Curing time and temperature influence the final mechanical and dielectric properties of the insulation. Production personnel must monitor the process and record relevant parameters for traceability.

After demolding, the cast component is inspected for surface defects, dimensional conformity, embedded foreign matter, cracks, incomplete filling, and other abnormalities. Depending on the product and standard, additional electrical and mechanical tests are conducted before the component is released for assembly.

6.5 Conductor and Enclosure Assembly

Assembly combines the conductors, insulation bodies, spacers, supports, joints, enclosure sections, grounding components, and accessories. The assembly sequence must ensure correct phase identification, conductor alignment, joint preparation, fastener installation, and insulation integrity.

Automated or controlled assembly processes help reduce variation in repetitive operations. Torque-controlled fastening, standardized joint kits, inspection checklists, and phase identification procedures contribute to reliable field installation. The enclosure is then completed with covers, seals, access panels, and connection interfaces according to the approved design.

6.6 Routine Quality Inspection

Each product undergoes standardized inspection procedures. These may include high-voltage tests, insulation resistance tests, dimensional inspection, mechanical verification, conductor continuity checks, grounding checks, enclosure inspection, and routine quality documentation.

The exact tests depend on the voltage class, product design, contract requirements, and applicable standards. High-voltage products require special attention to dielectric strength and partial-discharge behavior where specified. Low-voltage systems require verification of insulation, current-carrying components, connection quality, and protective continuity.

6.7 Third-Party Testing and Independent Validation

Testing collaboration with third-party institutions provides an additional level of confidence. Independent laboratories can verify selected safety, insulation, mechanical, thermal, and performance characteristics according to recognized standards or project specifications.

Third-party validation does not replace factory inspection or proper installation. Instead, it complements internal quality control by providing external evidence that the product has been evaluated under defined conditions. This is valuable for major projects, engineering contractors, consultants, and end users who require documented technical assurance.

7. Why Choose a Specialized Manufacturer?

Busway systems are not ordinary metal enclosures with conductors placed inside. They are integrated power equipment requiring knowledge of electrical insulation, conductor design, thermal management, mechanical engineering, connection technology, manufacturing control, and project installation.

A specialized manufacturer can evaluate the complete operating environment rather than selecting a generic product based only on current rating. It can help determine whether a copper or aluminum conductor is more suitable, whether solid insulation or another method is appropriate, how the system should interface with transformers and switchgear, and which tests are required before shipment.

Jiangsu Wopeng Power Technology Co., Ltd. was founded in 2018 as a specialized high-tech enterprise focused on high- and low-voltage busbar system development and manufacturing. Its engineering team includes experienced engineers, technical specialists, and production professionals with knowledge of power equipment technology.

The company’s product range extends from low-voltage systems to 35 kV tubular busbars. This range allows it to support different stages of a facility’s distribution network, including medium-voltage transformer connections, low-voltage distribution, wind power equipment, industrial systems, and specialized power supply applications.

Its products have been used across more than 17 provinces and in sectors including power generation, substations, wind energy, industrial manufacturing, rail transit, and large commercial facilities. This project experience helps the company understand the practical requirements of different environments, including restricted installation space, expansion work, high-current operation, outdoor exposure, and continuous industrial service.

8. Project-Based Application Experience

The High and Low Voltage Busway System has been specified as a preferred procurement product in multiple engineering projects. Documented examples include the main transformer renovation at the Huaneng Shenchi Taipingzhuang Wind Farm, undertaken by Shanxi Longlintai Power Installation Engineering Co., Ltd., and the Jinjiang Thermal Power Expansion Project, carried out by Shandong Electric Power Construction No. 3 Engineering Co., Ltd.

These examples illustrate two important application conditions. A wind farm renovation project may require equipment to fit into an existing electrical arrangement, with limited opportunities to modify the surrounding infrastructure. A thermal power expansion project may require reliable high-current connections, coordination with existing plant equipment, and integration with a larger generation and distribution system.

In both situations, a common-enclosure, fully insulated busway can provide a practical balance between compactness, safety, installation efficiency, and long-term reliability. The product is suitable for centralized distribution on the power source side and for connections between transformers, switchgear, and busbars operating at different voltage levels.

Project references should not be interpreted as a guarantee that one configuration is suitable for every facility. Each project requires electrical calculations, route confirmation, interface review, environmental assessment, and compliance verification. However, successful application in wind power and thermal power environments demonstrates the system’s relevance to demanding generation and industrial projects.

9. Installation and Commissioning Considerations

Correct installation is essential to achieve the designed performance of a busway system. Before delivery, the installer should review the route drawings, section identification, lifting instructions, joint assembly procedure, support arrangement, clearance requirements, grounding plan, and interface details.

The installation route should be checked for dimensional accuracy and structural readiness. Supports must be capable of carrying the system weight and resisting mechanical forces associated with operation, transportation, vibration, and short-circuit conditions. The route should also provide sufficient clearance for installation, inspection, thermal expansion, and maintenance.

During assembly, each section should be matched with its identification mark. Joint surfaces must be clean and free from contamination. Fasteners should be installed using the specified sequence and tightening torque. Phase sequence, polarity, grounding continuity, and connection orientation should be verified before covers are closed.

After installation, commissioning may include visual inspection, insulation resistance testing, high-voltage testing where required, phase verification, grounding continuity testing, mechanical inspection, and functional checks of connected equipment. Test results should be recorded as part of the project handover documentation.

For outdoor or humid applications, special attention should be given to sealing, drainage, condensation prevention, corrosion protection, and cable or busway entry points. For indoor industrial environments, dust accumulation, chemical exposure, ventilation, and temperature rise should be evaluated periodically.

10. Safety and Reliability Features

Safety begins with preventing access to energized conductors. The enclosed and fully insulated construction of the system reduces the likelihood of accidental contact. The enclosure can also act as a protective barrier against external impact and foreign objects.

Grounding is another essential feature. The enclosure and designated grounding conductors must be connected to the facility grounding system according to the approved design. Grounding continuity should be verified during installation and inspected during maintenance.

Protection against short circuits requires coordination between the busway rating and upstream protective equipment. The system must be selected to withstand the prospective short-circuit current for the specified duration. Joints, supports, conductors, and enclosures must all be considered in the short-circuit design.

Thermal reliability depends on conductor size, enclosure construction, ambient temperature, installation spacing, ventilation, joint resistance, and load profile. A factory-designed busway provides a controlled basis for these calculations, but the actual installation must follow the manufacturer’s instructions. Blocked ventilation, overloaded sections, loose joints, or unapproved modifications can reduce performance.

Monitoring can further improve reliability in critical facilities. Temperature sensors, thermal imaging, partial-discharge monitoring, and other diagnostic methods may be incorporated or used during maintenance, depending on the voltage level and project requirements. Early detection of abnormal heating or insulation behavior helps reduce the risk of unexpected failure.

11. Environmental and Operating Adaptability

Power equipment may operate in clean indoor electrical rooms, dusty industrial workshops, humid coastal areas, outdoor substations, wind farms, or locations with significant temperature changes. The busway design must reflect the environment rather than assuming that one enclosure or insulation arrangement is appropriate everywhere.

A sealed enclosure with an appropriate protection rating can limit the entry of dust and water. The supplied product information indicates that a protection rating of at least IP54 may be adopted for suitable sealed designs, although the final rating must be confirmed for each product configuration and project requirement.

Corrosion protection is important in coastal, chemical, and outdoor environments. Enclosure material, surface coating, fastener selection, sealing materials, and drainage details should be selected according to exposure conditions. For high-altitude installations, air density and reduced dielectric strength may affect insulation clearances and testing requirements.

Temperature changes can cause mechanical expansion and contraction. Long busway routes may require expansion provisions or flexible interfaces. The system designer should consider the operating temperature of conductors and enclosures, as well as the temperature of connected transformers and switchgear.

Vibration and seismic conditions should also be reviewed. Wind turbines, industrial machinery, and transportation facilities may expose electrical equipment to continuous or intermittent mechanical movement. Supports, joints, and interfaces must be engineered to maintain mechanical and electrical integrity under the expected conditions.

12. Customization and OEM Support

Every large power project has different route dimensions, connection points, current levels, environmental conditions, and operating requirements. A standard product may provide the basic technology, but customization is often necessary to achieve a reliable installation.

Customization may include conductor material, conductor cross-section, voltage class, current rating, enclosure dimensions, insulation method, section length, bend angle, transformer interface, switchgear interface, grounding arrangement, expansion joint, mounting hardware, protection rating, surface coating, and monitoring accessories.

OEM support is especially useful for engineering contractors and equipment integrators. The manufacturer can work from electrical single-line diagrams, general arrangement drawings, equipment interface drawings, route surveys, and project specifications. It can then prepare a coordinated busway layout for review and approval.

A well-managed customization process includes technical clarification, drawing approval, material selection, production scheduling, inspection planning, packaging, delivery coordination, and installation support. This process helps prevent late changes and minimizes the risk of field modification.

As a China-based custom insulated busbar manufacturer and tubular busbar system factory, Jiangsu Wopeng Power Technology Co., Ltd. provides tailored OEM solutions for customers with specific technical and dimensional requirements. Its experience with copper and aluminum tubular busbars, epoxy-cast products, compact busways, and wind power systems supports a broad range of applications.

High And Low Voltage Busway System

13. Comparison with Competing Distribution Methods

13.1 Busway Compared with Parallel Cables

Parallel cables may be economical for small or moderate loads and can be routed around obstacles. However, high-current cable installations may require many conductors, large cable trays, significant bending space, and numerous terminations. Installation labor can increase substantially when each cable must be cut, pulled, stripped, arranged, and terminated individually.

The busway system offers a more integrated alternative. Factory-assembled sections reduce field work, and the enclosure maintains conductor organization along the route. The system may also simplify future inspections and expansions when standardized accessories are used.

13.2 Busway Compared with Open Conductors

Open conductors can be effective in specialized high-current applications, but they require carefully controlled clearances, supports, barriers, and environmental protection. They may be more exposed to contamination, accidental contact, and mechanical damage.

A fully insulated busway places the conductors inside an engineered insulation system and protective enclosure. This is advantageous where safety, compactness, and environmental shielding are important. It also produces a more controlled installation appearance.

13.3 Busway Compared with Conventional Cable Trays

Cable trays provide flexible routes for many types of cables and are widely used throughout industrial and commercial facilities. However, a tray system remains dependent on separate cables, cable cleats, terminations, supports, and spacing rules. For very high-current transformer or switchgear connections, a busway may offer a more compact and standardized solution.

The best choice depends on the entire system. Cable trays may be preferable for mixed control and power cabling, complex branch circuits, or routes requiring frequent changes. Busways are especially attractive for concentrated high-current distribution and long, clearly defined feeder routes.

14. Total Cost of Ownership

Initial purchase price is only one part of the cost of a power distribution system. Engineering, supports, installation labor, construction time, testing, access requirements, maintenance, expansion, and downtime all influence the total cost of ownership.

A busway may reduce labor because it is prefabricated and requires fewer field terminations. Its compact dimensions may reduce support steel, building penetrations, and electrical room space. Its modular construction may also lower the cost of future expansion or equipment relocation.

Maintenance costs may be reduced when the system is sealed and protected from contamination. In critical facilities, improved reliability can have an even greater economic value because avoiding an outage may be more important than reducing the original equipment cost.

Cost comparisons should be made using equivalent technical requirements. A low-cost cable arrangement may not include the same fault withstand rating, environmental protection, installation labor, monitoring capability, or expansion flexibility. A professional comparison should evaluate the complete installed and operating system over its expected service life.

15. Sustainability and Resource Efficiency

Efficient power transmission reduces energy loss and supports more sustainable facility operation. Conductor selection, cross-sectional area, joint quality, and thermal design all affect electrical losses. A properly engineered busway can provide a low-impedance route for high-current power transmission.

Compact construction may reduce the quantity of support materials and installation accessories required. Prefabrication can also reduce on-site waste from cable cutting, packaging, and temporary construction activities. Longer service life and easier maintenance may reduce the need for frequent replacement.

Copper and aluminum are both recyclable materials. Responsible material selection, production control, and end-of-life recycling can contribute to improved resource efficiency. The environmental performance of the complete system should consider manufacturing energy, transport weight, installation materials, operating losses, maintenance, and recyclability.

16. Selecting the Correct System

Before selecting a High and Low Voltage Busway System, the project team should define the electrical and physical requirements. Important questions include the rated voltage, continuous current, short-circuit current, frequency, phase arrangement, neutral requirements, grounding method, installation location, ambient temperature, altitude, pollution level, humidity, and required protection rating.

The team should also confirm the route length, number of bends, vertical sections, expansion points, transformer and switchgear interfaces, support locations, access requirements, lifting limitations, and future expansion plans. A route survey is valuable for renovation and retrofit projects because existing structures may differ from old drawings.

The conductor material should be selected according to conductivity, weight, cost, available space, joint technology, and project standards. Copper may be preferred for compact high-conductivity arrangements, while aluminum may provide weight and cost advantages. Neither material should be selected solely on purchase price.

Insulation must be matched to the voltage level and environment. Solid epoxy insulation can provide strong mechanical and dielectric performance for medium-voltage tubular busbars. Cast-resin systems can provide robust protection for low-voltage products. Other insulation arrangements may be suitable in specialized applications.

The manufacturer should provide technical drawings, product specifications, test documentation, installation instructions, maintenance recommendations, and interface details. For major projects, factory inspection and third-party testing may be included in the quality plan.

17. Maintenance Recommendations

Maintenance requirements depend on the voltage class, operating environment, load profile, enclosure design, and project standards. A maintenance program should begin with a baseline inspection after commissioning. This creates a reference for future comparison.

Routine visual inspections should check for enclosure damage, corrosion, loose covers, missing fasteners, water entry, abnormal noise, overheating marks, and changes near joints or interfaces. The grounding system should be inspected for continuity and mechanical integrity.

Thermal imaging can identify abnormal temperature rise at joints, terminals, or heavily loaded sections. A temperature difference between comparable phases or between adjacent joints may indicate loose connections, uneven loading, contamination, or another developing problem.

Insulation testing should be performed using procedures appropriate to the product and voltage class. High-voltage testing must be conducted only by qualified personnel using approved equipment and safety procedures. Testing intervals should be determined by the manufacturer’s recommendations, operating conditions, and applicable regulations.

Unauthorized drilling, welding, painting, opening, or modification of the enclosure should be avoided. Any change to the busway may affect insulation, grounding, protection rating, thermal performance, or mechanical strength. Modifications should be reviewed and approved by a qualified technical authority.

18. Quality Management and Technical Strength

Reliable busway production requires more than modern machines. It requires a quality management system that connects design, purchasing, production, inspection, packaging, delivery, and after-sales support. Each stage must be controlled so that the final product matches the approved technical requirements.

Jiangsu Wopeng Power Technology Co., Ltd. combines engineering personnel, technical specialists, production professionals, vacuum casting systems, CNC machining equipment, and automated assembly technologies. This combination supports both standard products and customized busway projects.

The company applies standardized inspection processes, including high-voltage tests, insulation tests, mechanical verification, and routine quality checks. Production records and inspection documentation help support traceability and project acceptance.

Its technical strengths are also reflected in the breadth of its product portfolio. By manufacturing 35 kV epoxy resin vacuum-cast tubular busbars, low-voltage epoxy-cast busbar trunking, copper and aluminum tubular busbars, wind power tubular busbars, compact busbar systems, and sliding contact line systems, the company can address a wide range of power transmission and distribution requirements.

This breadth is useful for customers seeking coordinated supply from one experienced manufacturer. It can simplify technical communication, reduce the number of suppliers involved in related systems, and support consistent documentation across different parts of a project.

19. Q&A

Q1: What is the primary purpose of a High and Low Voltage Busway System?

The primary purpose is to transmit and distribute electrical power through prefabricated, enclosed busbar assemblies. The system can connect generators, transformers, switchgear, distribution boards, industrial equipment, and building loads. Its compact and insulated structure is particularly useful for high-current routes and space-constrained installations.

Q2: Is the system suitable for both new construction and renovation projects?

Yes. The system can be designed for new plants, substations, buildings, and industrial facilities, as well as transformer renovation, plant expansion, equipment replacement, and retrofit work. Renovation projects require detailed route surveys and interface measurements to ensure that the new sections fit existing equipment and structures.

Q3: What is the advantage of a shared enclosure?

A shared enclosure saves space and provides centralized protection for the conductors. It also creates a more organized route, reduces the need for separate cable supports, and can simplify inspection and maintenance. The design is particularly useful where electrical rooms, transformer areas, or service shafts have limited available space.

Q4: What conductor materials are available?

The system may use copper or aluminum conductors. Copper offers high conductivity and can support compact designs, while aluminum is lighter and can reduce material and handling costs. The correct selection depends on current, voltage drop, dimensions, weight, connection technology, project standards, and budget.

Q5: How does fully insulated construction improve safety?

Fully insulated construction separates energized conductors from one another and from the enclosure. It reduces the likelihood of accidental contact, contamination-related faults, and phase-to-phase short circuits. Safe operation still requires proper grounding, protection coordination, installation, testing, and maintenance.

Q6: What insulation technologies can be used?

Depending on the product and voltage class, insulation may include epoxy resin vacuum casting, cast-resin insulation, gas insulation, or other engineered systems. Epoxy resin vacuum casting is particularly suitable for solid-insulated tubular busbars because it combines electrical insulation with mechanical support and environmental protection.

Q7: How does a busway compare with traditional cables?

A busway is generally more compact and standardized for high-current distribution. It reduces the quantity of field terminations and can support modular expansion. Cables may offer greater routing flexibility for small circuits or mixed services, so the best solution depends on current, route complexity, installation conditions, maintenance strategy, and project cost.

Q8: Can the busway system be customized?

Yes. Customization may include voltage class, current rating, conductor material, insulation type, enclosure dimensions, straight sections, bends, offsets, transformer connections, switchgear interfaces, grounding arrangements, protection rating, supports, and monitoring accessories. Custom designs should be reviewed and approved before production.

Q9: What tests are performed before shipment?

Testing depends on the product design and project requirements. Typical inspections may include high-voltage testing, insulation resistance testing, dimensional checks, mechanical verification, conductor continuity, grounding checks, enclosure inspection, and routine quality review. Third-party testing may also be arranged for selected performance characteristics.

Q10: What information should be provided when requesting a quotation?

Customers should provide the rated voltage, rated current, frequency, phase configuration, short-circuit withstand requirement, conductor preference, route dimensions, connection equipment, environmental conditions, installation location, protection rating, applicable standards, delivery schedule, and expected expansion requirements. Drawings, single-line diagrams, photographs, and route surveys can help the manufacturer prepare an accurate proposal.

Q11: Is the product suitable for wind power projects?

It can be suitable for wind farms, transformer stations, collection systems, and renovation projects when the selected configuration meets the project’s electrical, mechanical, and environmental requirements. Wind power installations may benefit from compact dimensions, factory prefabrication, sealed insulation, and reduced field assembly.

Q12: What support can a specialized supplier provide?

A specialized supplier can provide product selection, electrical and mechanical coordination, customized drawings, interface engineering, manufacturing, routine testing, documentation, installation guidance, commissioning support, and maintenance recommendations. This complete approach helps reduce technical risk throughout the project lifecycle.

20. Conclusion

The High and Low Voltage Busway System is a modern power distribution solution for facilities that require high current capacity, compact installation, strong insulation, controlled protection, and reliable long-term operation. Its shared-enclosure structure uses space efficiently and creates an organized route between generators, transformers, switchgear, substations, and loads.

Its fully insulated design reduces the risk of accidental contact and phase-to-phase faults, while factory-prefabricated sections can shorten installation time and reduce field workmanship risk. Modular construction supports future expansion, and sealed enclosures can reduce exposure to dust, moisture, and other environmental factors.

Compared with traditional high-current cable arrangements, the system can provide advantages in footprint, installation efficiency, thermal predictability, route management, maintenance, and scalability. These benefits are especially relevant to power plants, wind farms, industrial substations, thermal power expansion projects, commercial buildings, data centers, and other critical facilities.

The reliability of the finished system depends on correct design, precise manufacturing, appropriate material selection, thorough testing, and professional installation. Jiangsu Wopeng Power Technology Co., Ltd. combines engineering experience, vacuum casting, CNC machining, automated assembly, standardized inspection, and third-party testing cooperation to provide customized insulated busbar and tubular busbar system solutions.

From low-voltage distribution to tubular busbars rated up to 35 kV, the company’s product range supports diverse power transmission requirements. With project experience across power generation, substations, wind energy, manufacturing, rail transit, and large commercial facilities, it is positioned to support customers seeking safe, efficient, and adaptable busway infrastructure.

References

1. Jiangsu Wopeng Power Technology Co., Ltd., Product Information for High and Low Voltage Busway Systems.

2. Jiangsu Wopeng Power Technology Co., Ltd., Corporate and Manufacturing Capability Profile.

3. Technical documentation on fully insulated tubular busbars and epoxy resin vacuum-cast busbar systems.

4. General engineering principles for high-voltage and low-voltage busbar trunking systems.

5. General guidance on electrical enclosure protection ratings, insulation testing, grounding, and power distribution equipment maintenance.

6. Project application records for wind farm transformer renovation and thermal power expansion installations.

7. General technical references for copper and aluminum conductor selection in high-current power distribution.

Product: High And Low Voltage Busway System
