Ultra-High Voltage Magnesium-Aluminum Alloy Tubular Bus Bar: Performance, Manufacturing Technology, and UHV Applications

Ultra-high voltage power networks require conductive equipment that can carry enormous electrical loads while maintaining stable insulation, mechanical integrity, thermal performance, and long-term reliability. As transmission voltages increase to 500 kV, 750 kV, ±800 kV, and 1000 kV, conventional busbar designs face growing challenges related to weight, heat dissipation, structural deflection, corona control, installation complexity, and environmental exposure.

The ultra-high voltage magnesium-aluminum alloy tubular bus bar is developed to address these challenges. It combines the low density and conductivity advantages of aluminum with the improved strength and corrosion resistance associated with carefully controlled alloying elements, including magnesium, manganese, and rare-earth additions. Manufactured as a seamless tubular conductor, it provides a large current-carrying surface, good mechanical stability, efficient heat dissipation, and a geometry that supports uniform electric-field distribution.

This type of tubular bus bar is intended for ultra-high voltage transmission and transformation systems, substations, generating plants, renewable energy facilities, industrial distribution networks, and other demanding electrical installations. Its performance depends not only on the alloy formulation but also on casting quality, tube-forming technology, heat treatment, cold drawing, surface treatment, insulation compatibility, and final testing.

Jiangsu Wopeng Power Technology Co., Ltd. manufactures high- and low-voltage busbar systems and develops tubular busbar solutions for power generation, substations, wind power, rail transportation, industrial facilities, and large commercial projects. Its production capabilities include vacuum casting, CNC machining, automated assembly, high-voltage testing, insulation testing, mechanical verification, and routine quality inspection.

Ultra-high Voltage Magnesium-Aluminum Alloy Tubular Bus Bar

1. What Is an Ultra-High Voltage Magnesium-Aluminum Alloy Tubular Bus Bar?

An ultra-high voltage magnesium-aluminum alloy tubular bus bar is a hollow conductive tube designed to transmit and distribute large electrical currents in high-voltage and ultra-high voltage systems. The conductor is produced from an engineered aluminum-based alloy containing controlled proportions of magnesium and other alloying elements. Depending on the application, the material may also include manganese, rare-earth elements, or heat-resistant alloy additions.

The tubular structure differs from a solid rectangular busbar in both electrical and mechanical behavior. A tube can provide a large external surface for cooling while reducing unnecessary material in the neutral central area. Its circular or specially engineered cross-section also supports more uniform current distribution and electric-field control. In long-span installations, the tube can offer a favorable balance between bending stiffness, weight, and support spacing.

In ultra-high voltage equipment, the bus bar is not simply a metal conductor. It is part of an integrated system that may include supports, joints, connectors, shielding components, insulation, grounding arrangements, expansion compensation, and environmental protection. The conductor must therefore be compatible with the complete electrical and mechanical design.

A reliable product is normally selected according to rated voltage, rated current, short-circuit withstand requirements, operating temperature, installation span, environmental conditions, insulation method, connection design, and applicable technical standards. Product dimensions, alloy grade, wall thickness, surface finish, and support arrangement must be confirmed through engineering calculations and project specifications.

1.1 Typical Voltage and Application Range

The product line described for this type of busbar covers applications including 220 kV, 500 kV, 750 kV, ±800 kV, and 1000 kV systems. The specific voltage rating of an installed busbar system depends on the complete assembly, insulation coordination, clearance, shielding, support configuration, and type-test results rather than on the conductor material alone.

At 220 kV, tubular conductors may be used in substations, power plants, renewable energy collection systems, and high-current connections. At 500 kV and above, the requirements become more demanding. Corona suppression, electric-field uniformity, mechanical deflection, thermal stability, and environmental reliability must all be considered in greater detail.

For ±800 kV direct-current and 1000 kV alternating-current projects, the busbar system must be engineered as part of an ultra-high voltage installation. The conductor profile, shielding arrangement, support insulators, fittings, and clearances must be coordinated to manage electric stress and prevent unwanted discharge or insulation deterioration.

1.2 Why a Tubular Conductor Is Used

Tubular conductors are widely considered for high-current applications because their geometry offers a useful combination of electrical and structural benefits. The external surface supports convective heat transfer, while the hollow interior reduces mass compared with a solid conductor of equivalent outside diameter.

The round outer surface can also help reduce local electric-field concentration. Sharp corners and abrupt changes in geometry are undesirable in high-voltage systems because they can increase corona risk. A smooth tubular profile, combined with suitable shielding and carefully designed fittings, supports more stable field distribution.

From a mechanical perspective, a tube provides a high second moment of area relative to its weight. This can improve resistance to bending and vibration, which is valuable when the busbar must bridge longer distances between supports or operate in areas affected by wind, seismic activity, or equipment vibration.

2. Material Design and Alloy Options

The performance of a magnesium-aluminum alloy tubular bus bar begins with material design. Aluminum provides low density and good electrical conductivity, while magnesium and other alloying elements can improve strength, corrosion behavior, processability, and resistance to elevated temperatures. The alloy must be optimized because excessive strengthening additions may reduce conductivity, while an overly conductive but soft alloy may not provide sufficient mechanical stability.

The material specifications identified for the product line include 6063G aluminum-magnesium alloy, LF21Y aluminum-manganese alloy, 6R05 rare-earth aluminum alloy, and 2A14 heat-resistant aluminum alloy. Each material has different performance characteristics and is selected according to the requirements of conductivity, strength, temperature resistance, forming behavior, environmental exposure, and project design.

2.1 6063G Aluminum-Magnesium Alloy

6063G aluminum-magnesium alloy is suitable for applications requiring a practical balance of conductivity, corrosion resistance, surface quality, and mechanical performance. Its alloy family is commonly associated with good extrusion and forming behavior, which supports the production of tubular profiles with controlled dimensions and a smooth surface.

For tubular busbar use, the final properties depend on chemical composition, processing condition, heat treatment, cold drawing, wall thickness, and quality control. A properly processed alloy can provide the dimensional stability needed for long conductive sections while maintaining a comparatively low weight.

2.2 LF21Y Aluminum-Manganese Alloy

LF21Y aluminum-manganese alloy is selected where corrosion resistance, formability, and stable general-purpose performance are important. Manganese can contribute to strength and resistance to certain environmental effects while retaining the lightweight characteristics of an aluminum-based conductor.

This material may be considered for outdoor installations, industrial environments, and applications where the busbar is exposed to humidity, temperature cycling, airborne contaminants, or moderate corrosive conditions. The precise suitability should be confirmed through environmental assessment and project-specific testing.

2.3 6R05 Rare-Earth Aluminum Alloy

6R05 rare-earth aluminum alloy incorporates rare-earth elements to improve selected performance characteristics. Rare-earth additions can help refine the microstructure, influence impurity behavior, and improve the balance between strength, conductivity, and thermal stability.

For ultra-high voltage tubular conductors, microstructural control is important because the product may experience thermal cycling, mechanical loading, vibration, and long service periods. A refined and uniform structure can support more consistent performance along the length of the tube and reduce the risk of localized weakness.

2.4 2A14 Heat-Resistant Aluminum Alloy

2A14 heat-resistant aluminum alloy is used where elevated operating temperatures and mechanical stability are significant design factors. The product information indicates operating temperatures of approximately 150°C to 200°C for applicable designs. The actual allowable temperature depends on conductor dimensions, current, heat dissipation, joint design, ambient conditions, insulation, and the complete system configuration.

Heat-resistant alloy selection is particularly relevant in high-load substations, generator connections, renewable energy collection systems, and other installations where current levels may create substantial thermal stress. The alloy must retain its mechanical performance while limiting excessive temperature rise and electrical losses.

3. Main Technical Advantages

The ultra-high voltage magnesium-aluminum alloy tubular bus bar is designed to provide advantages in five main areas: electrical conductivity, weight reduction, thermal performance, mechanical strength, and environmental durability. These benefits are achieved through the combined effect of material selection, tubular geometry, manufacturing accuracy, and system-level engineering.

3.1 High Current-Carrying Capability

Ultra-high voltage systems frequently transmit large currents over compact connection routes. The tubular conductor is designed with an appropriate outside diameter, wall thickness, alloy grade, and surface finish to support the required current-carrying capacity.

The product information identifies rated currents of up to 12,000 A for applicable designs. This figure should be treated as a design reference rather than a universal rating. Actual current capacity depends on conductor dimensions, ambient temperature, installation orientation, ventilation, surface emissivity, joint resistance, solar exposure, and permissible temperature rise.

The hollow construction creates a large external cooling surface. Heat generated by electrical resistance can be transferred to the surrounding air through convection and radiation. By controlling temperature rise, the design can help maintain stable electrical performance and reduce thermal aging of nearby insulation and fittings.

3.2 Low Electrical Loss

Electrical loss is a major consideration in high-current transmission. Even small increases in conductor resistance can create significant energy losses over long operating periods. A carefully selected aluminum alloy offers substantially lower density than copper, while the tubular cross-section can provide the required conductive area with efficient use of material.

The product information describes electrical conductivity of at least 60% IACS for applicable products. Final conductivity is determined by alloy composition and processing condition. In a complete installation, total losses also include joint resistance, connector resistance, surface effects, proximity effects, and other system factors.

The smooth tubular profile can support consistent current distribution. At alternating-current frequencies used in power systems, skin effect and proximity effect must be considered during design. Tube diameter, wall thickness, phase spacing, and arrangement influence the distribution of current and the resulting losses.

3.3 Reduced Weight Compared with Copper

One of the most visible advantages of aluminum-based tubular busbars is reduced mass. Copper has excellent conductivity and strength, but its high density can increase the weight of conductors, supports, lifting equipment, foundations, and transport assemblies.

The product information gives an indicative weight range of approximately 8 to 12 kg per meter for the ultra-high voltage magnesium-aluminum alloy tubular bus bar. Comparable traditional copper busbars are described as approximately 25 to 30 kg per meter, while ordinary aluminum busbars are listed at approximately 7 to 10 kg per meter. These values vary according to cross-sectional dimensions, wall thickness, alloy grade, and configuration.

Lower weight can simplify logistics, reduce lifting requirements, and decrease mechanical loading on support structures. It may also make long-span layouts more practical. However, weight reduction should never be evaluated separately from short-circuit forces, wind loading, seismic requirements, thermal expansion, and support deflection.

3.4 Improved Mechanical Strength

Magnesium-aluminum alloy engineering is intended to improve the mechanical performance of aluminum-based conductors. The product is described as having tensile strength in the range of 180 to 250 MPa for applicable designs, with good bending resistance and vibration resistance.

The tubular section itself contributes to structural stiffness. Compared with a flat strip of similar mass, a tube can provide improved resistance to bending in multiple directions. This is important for installations with long support spans, high wind pressure, seismic loading, or vibration caused by nearby equipment.

Improved mechanical strength can also reduce sag and deformation, helping maintain designed electrical clearances. Stable geometry is especially important in outdoor substations and high-current connections where conductor movement could affect insulation coordination or connection reliability.

3.5 Temperature Resistance

High-current operation inevitably creates heat. If conductor temperature rises excessively, resistance increases, joints may deteriorate, insulation may age faster, and mechanical properties may change. Heat-resistant aluminum alloy options are therefore valuable for installations that experience continuous high loads or temporary overload conditions.

The product line is described as capable of stable operation at temperatures from approximately 150°C to 200°C for suitable designs. This does not mean that every project should operate continuously at the upper limit. The allowable operating temperature must be established through thermal calculations, test data, insulation requirements, connector limitations, and relevant technical standards.

Thermal performance is supported by the tubular geometry, smooth surface, alloy selection, and accurate dimensional control. The conductor can release heat through its external surface, while the internal cavity may contribute to natural air movement depending on the configuration.

3.6 Corona and Electric-Field Control

Corona discharge is a critical concern in ultra-high voltage equipment. It can cause audible noise, radio interference, ozone generation, energy loss, and gradual deterioration of nearby materials. Local electric-field concentration may arise from sharp edges, uneven surfaces, poor joints, or unsuitable fittings.

A smooth tubular conductor helps distribute the electric field more evenly than a profile with sharp corners. Full shielding and carefully designed connection components further support corona control. The product information describes a full shielding design intended to achieve uniform electric-field distribution and suppress corona discharge.

Corona performance must be verified at system level. Conductor diameter, surface condition, phase spacing, end fittings, supports, hardware, and neighboring equipment all influence electric-field behavior. Type testing and field measurement are important for validating performance under the intended voltage and environmental conditions.

3.7 Corrosion and Weather Resistance

Outdoor ultra-high voltage installations may be exposed to rain, humidity, ultraviolet radiation, industrial pollutants, salt fog, dust, and temperature changes. Coastal and offshore wind projects are particularly demanding because salt deposits can accelerate corrosion and affect surface leakage behavior.

Magnesium-aluminum alloy tubular busbars use alloy design and surface treatment to improve corrosion resistance. The product description also refers to advanced surface treatment technology and special oxidation treatment. These treatments can help protect the conductor surface, improve insulation adhesion, and reduce the risk of premature degradation.

Environmental resistance must be considered together with joint materials, fasteners, support hardware, sealants, and insulation. Galvanic corrosion can occur when dissimilar metals are connected in the presence of moisture. Proper interface design, compatible materials, drainage, sealing, and maintenance are therefore essential.

3.8 Resistance to Ice and Seismic Loading

In cold regions, ice accumulation can increase conductor weight and wind loading. It can also change the electric-field profile and increase mechanical stress on supports and joints. The product information identifies ice-resistant surface treatment as one of the design features.

In areas with strong seismic activity, the busbar must tolerate movement without losing clearances or damaging connections. The tubular conductor's strength and vibration resistance can contribute to system stability, but supports, expansion joints, flexible connectors, and seismic restraints must be designed as an integrated assembly.

4. Comparison with Conventional Busbar Materials

Choosing between copper, ordinary aluminum, and magnesium-aluminum alloy tubular busbars requires a complete technical and economic assessment. No single conductor material is ideal for every installation. The best choice depends on voltage, current, span, environment, space, weight restrictions, maintenance strategy, and total project cost.

Indicative Comparison of Busbar Options

Busbar Type	Indicative Weight	Electrical Performance	Mechanical Characteristics	Indicative Voltage Range
Magnesium-aluminum alloy tubular busbar	Approximately 8–12 kg/m for applicable designs	High conductivity, efficient heat dissipation, low loss potential	High specific strength, bending resistance, vibration resistance	Applications up to 1000 kV, subject to system design and testing
Traditional copper busbar	Approximately 25–30 kg/m for the referenced comparison	Very high conductivity but higher material density	Good strength, increased support and lifting load	Commonly used in high-voltage and medium-voltage systems
Ordinary aluminum busbar	Approximately 7–10 kg/m for the referenced comparison	Low density and acceptable conductivity, with grade-dependent strength	May require larger dimensions or additional structural support	Commonly used in low- and high-voltage applications
Flat or solid busbar profile	Depends on cross-sectional area and material	Performance depends on surface area, dimensions, and current distribution	May have lower multi-directional stiffness than a tubular profile	Used across a broad range of electrical systems

The comparison shows why magnesium-aluminum alloy tubular conductors are attractive for high-current and ultra-high voltage applications. Compared with copper, they can reduce conductor weight and structural loading. Compared with ordinary aluminum, engineered alloy options can provide improved strength, temperature resistance, and environmental durability. Compared with flat or solid profiles, the tubular geometry can provide better cooling and more favorable structural efficiency.

These advantages do not eliminate the need for careful engineering. A copper busbar may still be preferable where space is extremely limited and the highest possible conductivity is required. Ordinary aluminum may be suitable for less demanding installations where cost is the primary consideration. Magnesium-aluminum alloy tubular busbars are most valuable when the project requires a balanced solution involving current capacity, span, weight, mechanical stability, and environmental reliability.

5. Advanced Manufacturing Processes

The manufacturing process has a direct influence on the electrical, mechanical, and long-term reliability of the tubular busbar. A high-performance alloy cannot compensate for poor casting quality, inconsistent wall thickness, internal defects, rough surfaces, or inaccurate dimensions. For this reason, the product is manufactured through a sequence of controlled metallurgical and mechanical processes.

5.1 Raw Material and Alloy Composition Control

The first step is the control of raw materials and alloy composition. Aluminum, magnesium, manganese, rare-earth additions, and other alloying materials must be weighed and introduced according to the selected specification. Impurities and inclusions must be controlled because they can reduce conductivity, weaken the material, or create localized defects.

Material identification and traceability are important throughout production. Each batch should be associated with records covering raw material sources, alloy composition, melting conditions, casting parameters, heat treatment, dimensional inspection, and final testing. Traceability supports quality assurance and helps identify the cause of any nonconformity.

5.2 Horizontal Hot-Top Casting

Horizontal hot-top casting technology is used to improve material purity and microstructural uniformity. The process is designed to control the molten metal flow and solidification conditions, helping reduce segregation and surface or internal defects.

Uniform solidification is important for a tubular conductor because it supports consistent strength and conductivity along the product length. Variations in grain structure or alloy distribution may lead to uneven mechanical behavior, inconsistent heat treatment response, or localized electrical performance differences.

Process parameters such as melt temperature, cooling rate, casting speed, mold condition, and metal cleanliness must be monitored. The objective is to produce a stable billet or preform suitable for subsequent hot working and tube formation.

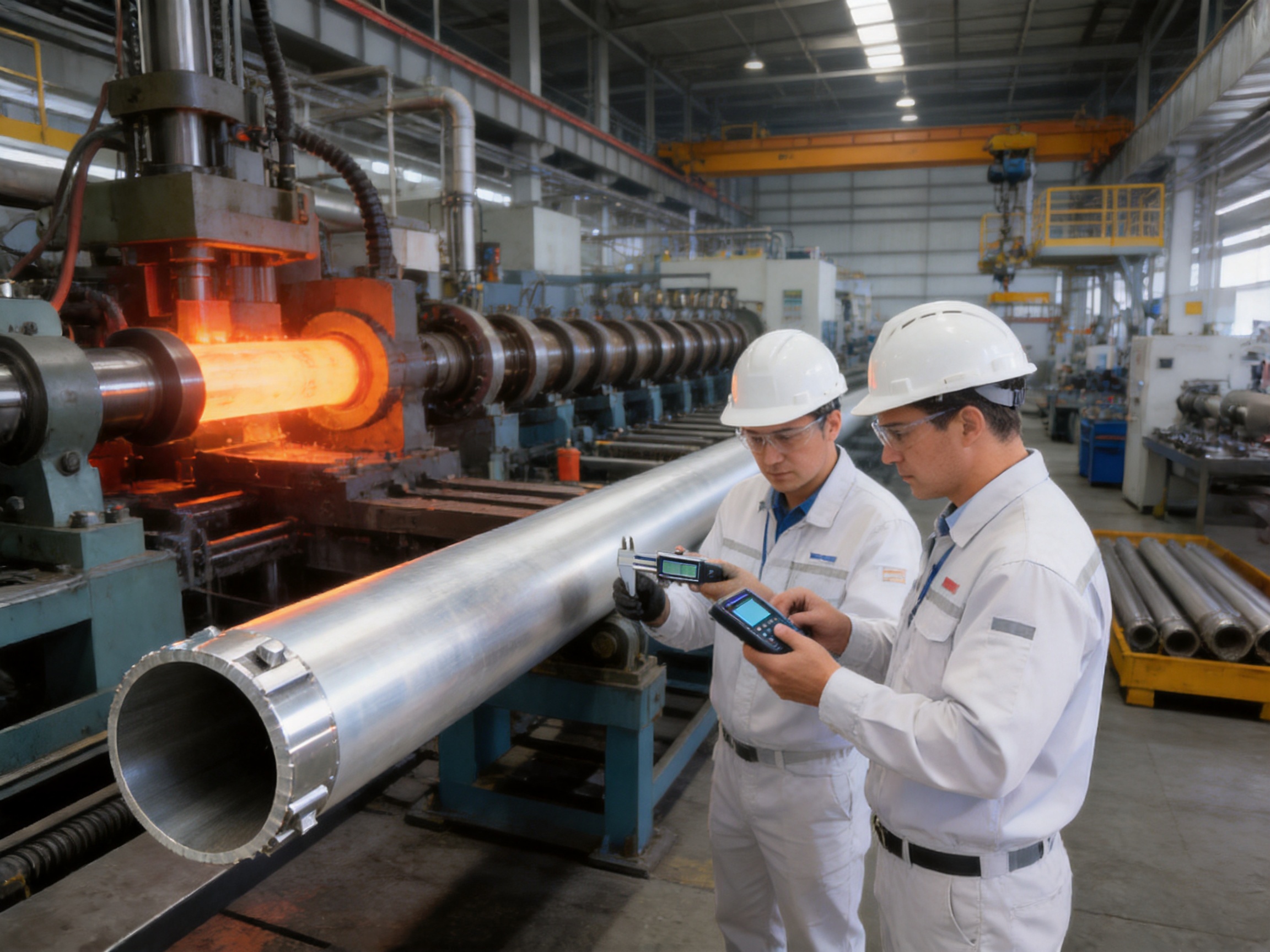

5.3 Transverse Piercing Hot Rolling

Transverse piercing hot rolling is used to form seamless tubular material. Instead of joining a flat strip and relying on a weld seam, the process creates the hollow section through controlled piercing and rolling of a solid billet or preform.

The absence of a welded seam eliminates a potential line of weakness and avoids the need to manage weld-related variations in conductivity, strength, and corrosion behavior. Seamless production is especially valuable for ultra-high voltage conductors, where uniformity and structural continuity are important.

During hot rolling, the billet is shaped through a controlled sequence of deformation steps. The process must manage temperature, reduction ratio, mandrel alignment, roll condition, and dimensional stability. Poor control may result in eccentricity, uneven wall thickness, surface cracking, or internal defects.

5.4 Thermomechanical Treatment

Thermomechanical treatment combines controlled deformation and heat treatment to achieve the desired balance of strength, conductivity, ductility, and dimensional stability. The treatment affects grain structure, precipitation behavior, residual stress, and the final response of the alloy to service loads.

For heat-resistant and rare-earth aluminum alloys, thermomechanical treatment is particularly important. The process must be adapted to the alloy's chemical composition and target performance. Excessive treatment may reduce conductivity or cause distortion, while insufficient treatment may leave the product below the required strength or stability.

5.5 Multipass Cold Drawing

Multipass cold drawing is used to refine dimensions, improve surface quality, and achieve accurate tubular geometry. The tube is drawn through a series of dies, with controlled reductions at each stage. Multipass processing allows dimensional accuracy to be developed gradually rather than through a single severe deformation.

Accurate outside diameter, inside diameter, wall thickness, straightness, and roundness are important for installation and electrical performance. Consistent geometry supports reliable connection design, predictable support loading, and uniform electric-field distribution.

Cold drawing can also improve surface finish and influence mechanical properties. Lubrication, die condition, drawing speed, intermediate treatment, and residual stress control must be managed carefully. Final straightening and inspection are required to confirm that the tube meets project tolerances.

5.6 Surface Oxidation and Protective Treatment

Surface treatment serves several purposes. It can improve corrosion resistance, support insulation adhesion, reduce surface contamination, and provide a stable interface for epoxy vacuum casting or PTFE wrapping. Special oxidation treatment is used to address the potential adhesion challenges associated with aluminum alloy surfaces.

The surface must be clean and uniformly prepared before insulation is applied. Oil, dust, oxide irregularities, and handling contamination may reduce bonding quality or create voids. Process control should include surface preparation, treatment concentration, processing time, drying, storage, and protection against recontamination.

For outdoor installations, surface protection should be selected in accordance with the environmental category. Salt fog, industrial pollution, ultraviolet exposure, and condensation can influence the service life of the finish. The compatibility of the surface treatment with connectors, sealants, and insulating materials must also be confirmed.

5.7 CNC Machining and Precision Fittings

Tubular busbars require accurate end preparation, drilling, slotting, connector interfaces, and fitting installation. CNC machining can improve dimensional repeatability and reduce variation between production batches.

Machining accuracy is important at joints because contact resistance, alignment, and mechanical stress are affected by the quality of the interface. Poorly prepared contact surfaces may cause localized heating and increased losses. Proper tooling, deburring, surface cleaning, torque control, and contact protection are essential during assembly.

5.8 Vacuum Casting and Insulation Compatibility

The magnesium-aluminum alloy tubular busbar is compatible with insulation processes such as epoxy resin vacuum casting and PTFE wrapping. Vacuum casting helps reduce air voids and improve the integrity of the insulating layer, provided that the conductor surface has been properly prepared and the resin system is correctly processed.

Insulation adhesion must remain stable during thermal cycling, mechanical vibration, moisture exposure, and voltage stress. The coefficient of thermal expansion of the conductor, insulation, and support structure should be considered. Proper curing temperature, vacuum level, resin viscosity, mold design, and post-curing conditions contribute to reliable insulation quality.

PTFE wrapping may be selected where flexibility, chemical resistance, temperature performance, or specific dielectric characteristics are required. The wrapping tension, overlap, cleanliness, edge treatment, and final thickness must be controlled to prevent gaps, wrinkles, or weak points.

6. Quality Control and Testing

Quality control should cover raw materials, semi-finished tubes, completed conductors, insulation systems, fittings, and final assemblies. Because an ultra-high voltage busbar operates as part of a critical power system, inspection must address both routine manufacturing consistency and type-level performance.

6.1 Material Testing

Material testing may include chemical composition analysis, electrical conductivity measurement, tensile testing, yield strength testing, elongation testing, hardness measurement, and metallographic examination. These tests confirm that the alloy and processing condition meet the specified requirements.

Microstructural analysis can reveal grain uniformity, inclusions, segregation, cracks, and heat-treatment response. This is particularly relevant for rare-earth and heat-resistant alloy products, where microstructure has a significant effect on the balance of strength and conductivity.

6.2 Dimensional Inspection

Dimensional inspection typically verifies outside diameter, inside diameter, wall thickness, straightness, roundness, length, end preparation, and fitting position. Wall thickness consistency is important because local thin areas may reduce mechanical strength and local thick areas may affect weight and forming accuracy.

Accurate dimensions also simplify field installation. When conductor sections, connectors, supports, and insulation components are manufactured to consistent tolerances, assembly time is reduced and the likelihood of misalignment is lowered.

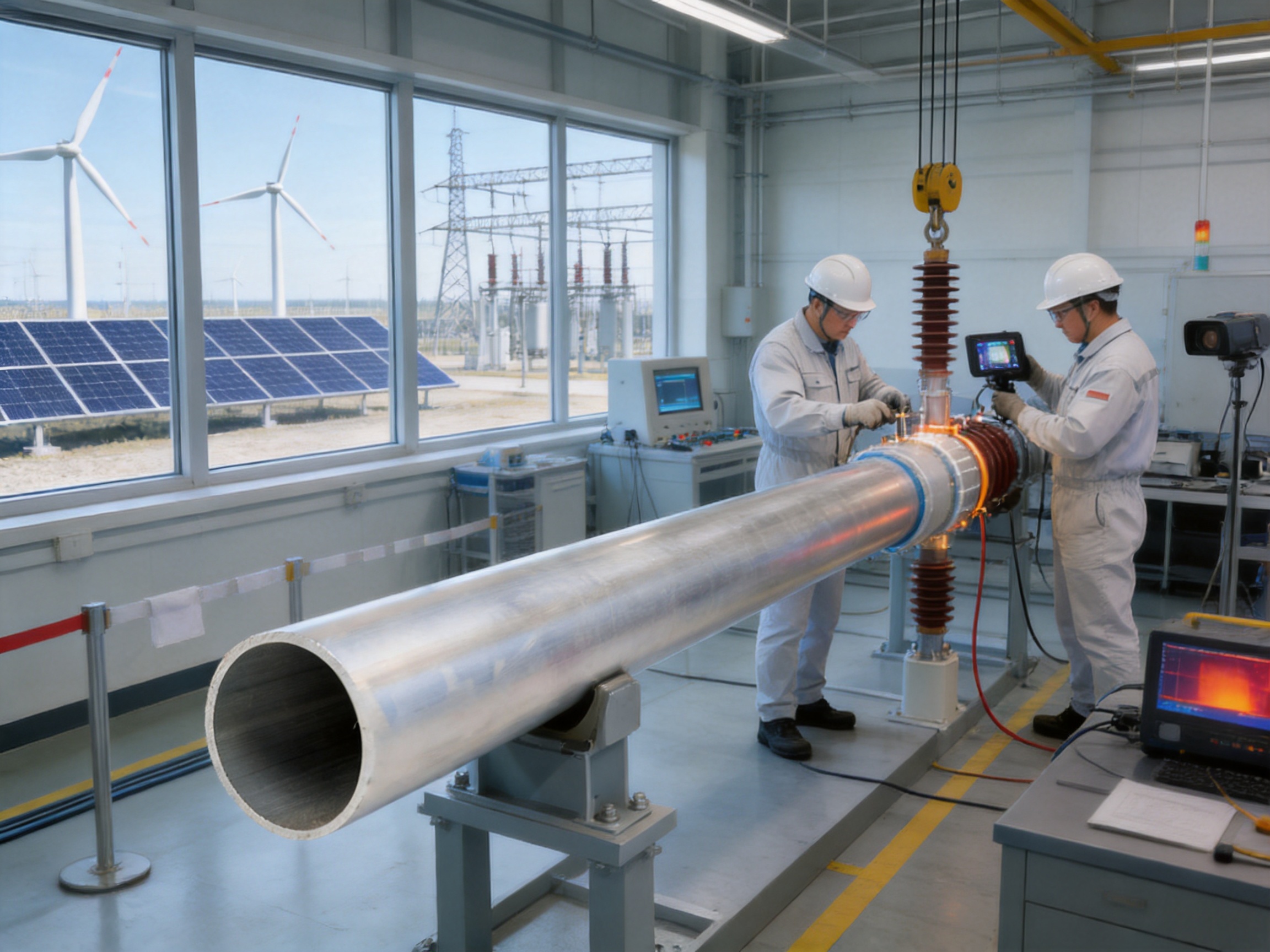

6.3 Electrical Testing

Electrical testing may include conductivity measurement, resistance measurement, insulation resistance testing, power-frequency withstand testing, impulse withstand testing, partial discharge testing, and corona observation, depending on the product configuration and project requirements.

High-voltage testing is used to confirm that the insulation system and conductor assembly can withstand the specified electrical stresses. Partial discharge testing is especially valuable because it can identify voids, sharp points, contamination, poor bonding, or other defects that may not be visible during routine inspection.

6.4 Mechanical Verification

Mechanical verification may include tensile testing, bending testing, vibration assessment, support-span evaluation, short-circuit force analysis, and connection-strength testing. These checks help confirm that the conductor can withstand transportation, installation, operation, and abnormal system events.

For long-span applications, deflection and vibration behavior should be evaluated under the expected combination of conductor weight, wind, ice, temperature, and electromagnetic forces. Support spacing must be selected according to actual mechanical calculations rather than a general maximum-span assumption.

6.5 Environmental Testing

Environmental testing may include salt spray, humidity, thermal cycling, ultraviolet exposure, corrosion assessment, and low-temperature testing. The required program depends on the installation environment and applicable standards.

Offshore wind power, coastal substations, high-altitude stations, and industrial plants may require more demanding validation than indoor installations. Environmental testing should include not only the conductor but also insulation, joints, fasteners, coatings, supports, and sealing components.

7. Applications in Modern Power Systems

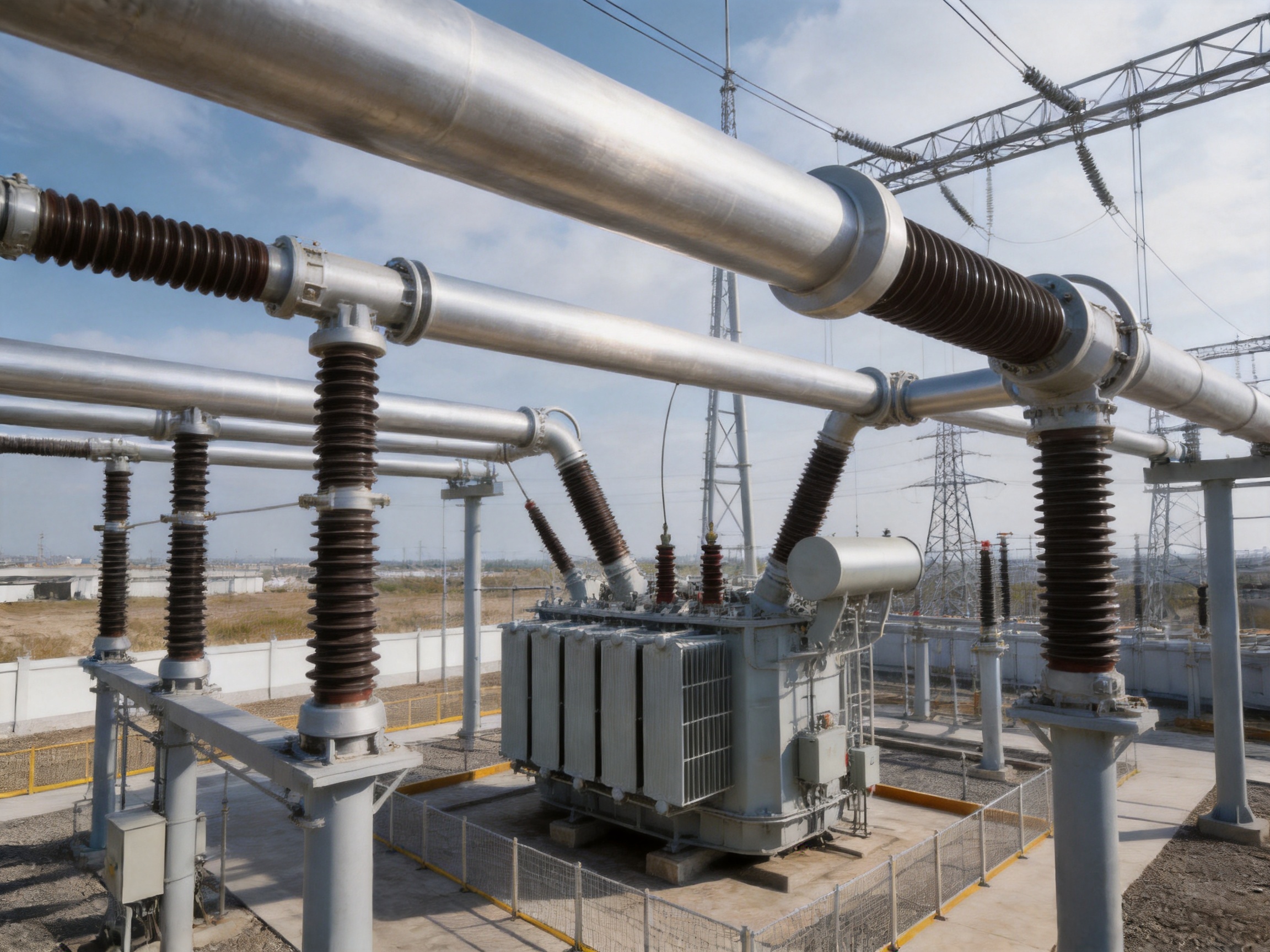

7.1 Ultra-High Voltage Substations

Ultra-high voltage substations use busbars to connect transformers, circuit breakers, disconnectors, instrument transformers, reactors, transmission line terminals, and other major equipment. The busbar must carry high currents while maintaining designed electrical clearances and stable mechanical positioning.

Magnesium-aluminum alloy tubular busbars can reduce the load on support structures and simplify the handling of large-diameter conductors. Their smooth profile and high specific strength are useful where the substation layout includes long connections or significant wind and seismic loads.

7.2 Power Generation Plants

Hydropower, thermal power, nuclear-related auxiliary systems, and renewable energy plants all require reliable high-current connections between generators, transformers, switchgear, and grid interfaces. The selected busbar must tolerate high continuous current, short-circuit forces, temperature rise, vibration, and maintenance activity.

In generator connections, the conductor may be installed in a space with elevated temperature and strong electromagnetic forces. Heat-resistant alloy options and mechanically stable tubular structures can support reliable operation when properly matched to the generator and transformer design.

7.3 Wind Power and Photovoltaic Facilities

Wind and photovoltaic installations often have distributed generation units and complex collection systems. Wind turbines introduce vibration, cyclic mechanical loads, and challenging installation conditions. Offshore wind projects add salt fog, humidity, strong wind, and restricted maintenance access.

Tubular busbars for wind power applications can provide a lightweight alternative to heavier conductor arrangements while maintaining the required current capacity. The product's corrosion resistance, vibration resistance, and compatibility with insulation systems are valuable in turbine towers, collection systems, converter connections, and grid interface equipment.

Photovoltaic power plants may require high-current connections between inverter stations, transformers, and collection substations. Outdoor exposure, temperature cycling, dust, and solar heating must be considered when selecting conductor dimensions and surface treatment.

7.4 Industrial Power Distribution

Metallurgy, chemical processing, mining, manufacturing, and other heavy industries often operate large motors, furnaces, rectifiers, compressors, and process equipment. These facilities may experience high current, harmonic content, vibration, dust, chemical exposure, and frequent load changes.

A tubular busbar system can be engineered to provide reliable high-current distribution with a compact and mechanically strong layout. Surface protection and insulation selection should be adapted to the specific industrial atmosphere, particularly where corrosive gases or conductive dust are present.

7.5 Rail Transportation

Rail transportation systems require dependable power transmission and distribution under vibration, movement, temperature variation, and limited installation space. Tubular conductors may be used in substations, traction power systems, depot facilities, and high-current connection equipment.

The high specific strength and vibration resistance of magnesium-aluminum alloy products can support lightweight system design. However, railway applications require careful consideration of dynamic loading, electromagnetic compatibility, fire performance of insulation, clearance, grounding, and maintenance access.

7.6 High-Altitude and Coastal Installations

High-altitude substations face reduced air density, lower temperatures, strong ultraviolet radiation, and potentially greater insulation coordination challenges. Coastal and offshore facilities face salt contamination, humidity, and corrosion. In both environments, conductor geometry, insulation, surface treatment, and clearances must be selected through project-specific engineering.

The alloy tubular busbar is suitable for consideration in these applications because of its weather resistance, corrosion resistance, low-temperature capability, and compatibility with insulation processes. The complete system still requires environmental qualification and appropriate maintenance planning.

8. Advantages of the Manufacturing Company and Its Engineering Capabilities

Jiangsu Wopeng Power Technology Co., Ltd. was founded in 2018 as a high- and low-voltage busbar system manufacturer. The company focuses on power transmission and distribution products for critical infrastructure and industrial applications.

Its portfolio covers 35 kV epoxy resin vacuum-cast tubular busbars, low-voltage cast-resin busways, copper and aluminum tubular busbars, wind power tube busbars, compact busbar systems, and sliding contact line systems. This range gives the company experience across different voltage levels, conductor materials, insulation methods, and installation environments.

A broad product portfolio can be valuable to project customers because the busbar system can be evaluated alongside related products rather than as an isolated component. The company can consider the relationship between conductor selection, insulation, joints, supports, layout, and system integration.

8.1 Engineering and Technical Team

The company has engineers, technical specialists, and production professionals with experience in power equipment technology. Engineering expertise is important for projects involving nonstandard dimensions, special current ratings, unusual installation spans, high-temperature operation, outdoor exposure, or customized insulation structures.

A capable engineering team can assist with conductor selection, alloy selection, thermal calculations, support spacing, joint design, insulation coordination, installation procedures, and testing requirements. Customization should be based on documented technical parameters and verified calculations rather than on nominal product descriptions alone.

8.2 Modern Production Equipment

Production facilities include vacuum casting systems, CNC machining equipment, and automated assembly technologies. Vacuum casting supports the manufacture of insulated busbar products with controlled resin distribution and reduced void risk. CNC machining supports accurate conductor and fitting dimensions. Automated assembly can improve repeatability and reduce manual variation.

Modern equipment is most effective when combined with qualified procedures, trained operators, preventive maintenance, calibration, process records, and inspection checkpoints. Manufacturing capability is therefore represented by both physical equipment and the management system controlling its use.

8.3 Quality Management and Third-Party Collaboration

The company applies standardized inspection procedures including high-voltage tests, insulation tests, mechanical verification, and routine quality checks. Testing collaboration with third-party institutions provides an additional method of independent validation for safety and performance.

Third-party testing can be especially useful for customized products, new alloy combinations, high-voltage designs, and applications requiring project approval. Test reports should be reviewed to confirm that the tested product configuration, voltage level, current rating, insulation system, environmental conditions, and mechanical arrangement correspond to the proposed installation.

8.4 Project Experience

Wopeng products operate across more than 17 provinces and key industrial sectors. Experience in different regions and industries exposes the manufacturer to varied environmental conditions, installation practices, transportation requirements, and customer specifications.

Project experience can help identify practical issues that may not appear in a laboratory calculation. These issues may include lifting limitations, access restrictions, field joint tolerances, thermal expansion, support alignment, insulation handling, maintenance clearances, and environmental protection.

9. How to Select the Correct Tubular Busbar

Selection should begin with a complete technical data sheet. Important parameters include system voltage, rated current, short-circuit current, frequency or direct-current mode, continuous operating temperature, ambient temperature, altitude, pollution level, wind speed, ice load, seismic intensity, support span, installation orientation, insulation type, and connection method.

9.1 Electrical Requirements

The conductor must be sized according to continuous current, emergency loading, short-circuit withstand, permissible temperature rise, and electrical loss. If harmonics or non-sinusoidal currents are present, their thermal and electromagnetic effects should be included.

The design should also consider corona inception, radio interference, electric-field concentration, phase spacing, clearances to ground, and the arrangement of nearby equipment. Ultra-high voltage systems require special attention to end fittings, shields, grading rings, and connection transitions.

9.2 Mechanical Requirements

Mechanical selection includes conductor weight, span, wind loading, ice loading, seismic movement, thermal expansion, vibration, short-circuit forces, and support stiffness. A maximum span of approximately 8 meters is identified in the product information for applicable designs, but the actual allowable span must be calculated for each project.

Support insulators and hardware must be able to withstand the combined static and dynamic loads. Flexible connections or expansion joints may be required where temperature changes or seismic movement could produce excessive stress.

9.3 Environmental Requirements

Outdoor and harsh-environment projects should identify salt fog, industrial pollution, humidity, ultraviolet exposure, altitude, temperature extremes, dust, ice, and chemical contamination. Surface treatment and insulation should be selected accordingly.

For coastal and offshore projects, galvanic compatibility between the alloy tube and other metals is especially important. Drainage, sealing, protective coatings, and inspection access should be incorporated into the layout.

9.4 Installation and Maintenance Requirements

The design should include transportation length, lifting points, field jointing, installation tools, torque requirements, insulation protection, grounding, and inspection access. Lightweight conductors may reduce lifting requirements, but long tubular sections still require proper handling to avoid bending, dents, surface damage, or contamination.

Maintenance planning should identify inspection intervals, corrosion monitoring, joint temperature measurement, insulation testing, and cleaning requirements. A well-designed system should permit inspection without unnecessary disassembly or exposure to avoidable safety risks.

10. Installation Considerations

Before installation, all conductor sections, fittings, supports, insulation components, and fasteners should be checked against approved drawings and packing lists. The tube surface should be inspected for dents, scratches, contamination, and deformation. Damaged components should not be installed without technical evaluation.

Supports must be aligned and secured before the conductor is placed. Misalignment can create bending stress, poor joint fit, and uneven loading. Installation teams should use suitable slings, spreader beams, protective pads, and lifting methods to prevent local deformation.

Joint surfaces must be cleaned and prepared according to the approved procedure. Contact compound, plating, washers, bolts, and torque values should match the design. Over-tightening may deform the tube or damage fittings, while under-tightening may increase contact resistance and cause overheating.

Insulation should be protected from moisture, dust, mechanical impact, and incorrect handling. Vacuum-cast components require the specified curing and storage conditions. PTFE wrapping must maintain its designed overlap and tension throughout installation.

After installation, dimensional checks, torque verification, continuity testing, insulation testing, high-voltage testing, and visual inspection should be completed as required. Test results should be recorded as part of the commissioning documentation.

11. Service Life and Maintenance

With appropriate alloy selection, anti-corrosion treatment, correct installation, and normal operating conditions, the product information indicates a potential service life of approximately 30 to 40 years in ultra-high voltage systems. Actual service life depends on electrical loading, environmental exposure, maintenance quality, joint condition, insulation aging, and abnormal events.

Routine inspection should look for corrosion, coating damage, surface contamination, loose hardware, overheating, unusual noise, partial discharge indications, insulation cracking, support displacement, and signs of vibration fatigue. Thermal imaging can help identify high-resistance joints before they become serious failures.

In coastal or polluted environments, surface cleaning may be necessary to control contamination. Cleaning methods should be approved for the conductor finish and insulation system. Abrasive treatment or unsuitable chemicals may damage protective surfaces and should be avoided.

Maintenance records should include inspection dates, operating current, measured temperatures, test results, repairs, replacement parts, and environmental observations. Trend analysis can reveal gradual increases in joint temperature, insulation deterioration, or mechanical movement.

12. Frequently Asked Questions

Q1: What is the main advantage of a magnesium-aluminum alloy tubular busbar?

The main advantage is the combination of low weight, high specific strength, good conductivity, efficient heat dissipation, and a smooth tubular profile suitable for electric-field control. It is intended to provide a balanced alternative to heavier copper conductors and less mechanically robust ordinary aluminum designs.

Q2: What voltage levels can this product support?

The product line is intended for applications including 220 kV, 500 kV, 750 kV, ±800 kV, and 1000 kV systems. The final rating must be confirmed for the complete busbar assembly through electrical design, insulation coordination, type testing, and project approval.

Q3: What is the maximum current rating?

Applicable product designs may support rated currents up to approximately 12,000 A. The actual current rating depends on alloy grade, tube dimensions, ambient conditions, installation layout, permissible temperature rise, joint design, and applicable standards.

Q4: Is the tubular busbar lighter than copper?

Yes. Aluminum-based alloy conductors generally have much lower density than copper. The referenced comparison gives an indicative weight of approximately 8 to 12 kg per meter for the magnesium-aluminum alloy tubular busbar, compared with approximately 25 to 30 kg per meter for the listed traditional copper busbar comparison. Actual weights vary by design.

Q5: Can it be used outdoors?

Yes. The product is designed for outdoor applications and includes corrosion-resistant and weather-resistant features. Outdoor suitability still requires evaluation of salt fog, humidity, industrial pollution, ultraviolet radiation, temperature, wind, ice, and altitude.

Q6: Is it suitable for offshore wind power?

It can be considered for offshore wind applications because of its lightweight structure, corrosion resistance, vibration resistance, and insulation compatibility. Offshore projects require additional validation for salt fog, humidity, mechanical vibration, maintenance access, and galvanic corrosion protection.

Q7: Can it be insulated with epoxy resin?

Yes. The conductor is described as compatible with epoxy vacuum casting and other insulation processes. Surface preparation and oxidation treatment are important for achieving strong adhesion and stable performance during thermal and electrical stress.

Q8: Can it be used with PTFE insulation?

Yes. PTFE wrapping is identified as another compatible insulation process. The final design must specify wrapping thickness, overlap, tension, temperature range, dielectric requirements, and installation procedures.

Q9: What is the expected service life?

With suitable anti-corrosion treatment, correct installation, and normal service conditions, the expected service life may reach approximately 30 to 40 years. This is an indicative value and should be confirmed through project conditions, testing, maintenance planning, and contractual requirements.

Q10: What is the maximum support span?

The product information identifies a maximum support span of up to approximately 8 meters for applicable configurations. The real span depends on conductor diameter, wall thickness, alloy grade, wind, ice, seismic loading, temperature, short-circuit forces, and allowable deflection.

Q11: How can a buyer evaluate the manufacturer?

A buyer should review alloy quality controls, manufacturing equipment, process records, type-test reports, high-voltage testing capability, mechanical test results, insulation experience, project references, quality management procedures, and after-sales engineering support. The tested configuration should correspond closely to the proposed project.

Q12: What information is needed for a quotation?

Important information includes voltage level, current rating, conductor length, outside diameter or required ampacity, alloy preference, insulation type, installation environment, support span, joint design, quantity, delivery location, testing requirements, and applicable standards. Drawings and layout information are helpful for accurate engineering.

13. Conclusion

The ultra-high voltage magnesium-aluminum alloy tubular bus bar is a specialized conductor designed for the demanding requirements of modern power transmission and transformation systems. Its value comes from the integration of engineered alloy chemistry, seamless tubular construction, accurate thermomechanical processing, high-quality surface treatment, insulation compatibility, and rigorous testing.

Compared with traditional copper busbars, it can reduce weight and structural loading. Compared with ordinary aluminum busbars, selected magnesium-aluminum, manganese, rare-earth, and heat-resistant alloys can provide improved strength, temperature performance, and environmental durability. The tubular shape supports efficient heat dissipation, high current transmission, mechanical stiffness, and more uniform electric-field distribution.

These benefits make the product suitable for ultra-high voltage substations, generating plants, wind power, photovoltaic facilities, rail transportation, industrial distribution systems, coastal projects, offshore installations, and high-altitude power stations. The correct design must nevertheless be based on complete electrical, thermal, mechanical, environmental, and insulation calculations.

Jiangsu Wopeng Power Technology Co., Ltd. supports this product category with experience in tubular busbars, cast-resin busbar systems, compact busbars, wind power busbars, and sliding contact line systems. Its use of vacuum casting, CNC machining, automated assembly, standardized inspection, high-voltage testing, insulation testing, mechanical verification, and third-party testing cooperation provides a foundation for customized and reliable busbar solutions.

For customers seeking a lightweight, mechanically stable, high-current conductor for ultra-high voltage applications, the magnesium-aluminum alloy tubular busbar is a strong option for technical evaluation. Final selection should be completed through verified performance data, project-specific design, type testing, and a clear installation and maintenance plan.

References

1. Materials and technical information supplied for the ultra-high voltage magnesium-aluminum alloy tubular busbar product.

2. Product information concerning 6063G aluminum-magnesium alloy, LF21Y aluminum-manganese alloy, 6R05 rare-earth aluminum alloy, and 2A14 heat-resistant aluminum alloy.

3. Manufacturer-provided information on horizontal hot-top casting, transverse piercing hot rolling, thermomechanical treatment, multipass cold drawing, surface oxidation, vacuum casting, CNC machining, and automated assembly.

4. Manufacturer-provided company profile and product portfolio information for high- and low-voltage busbar systems.

5. General engineering principles for high-voltage busbar design, insulation coordination, thermal rating, mechanical loading, corona control, and environmental qualification.

6. General aluminum alloy materials engineering references concerning conductivity, mechanical strength, heat treatment, corrosion resistance, and tubular conductor fabrication.

7. General power system engineering references concerning ultra-high voltage substations, high-current connections, busbar supports, short-circuit forces, and outdoor electrical installations.

Product: Ultra-high Voltage Magnesium-Aluminum Alloy Tubular Bus Bar
