Post Insulators for High-Performance Tubular Busbar and Electrical Systems

Introduction

Post insulators are essential components in many power transmission, distribution, and switching systems. They provide mechanical support for energized conductors and bus bars while maintaining reliable electrical insulation between live parts and grounded structures. In modern substations and industrial power installations, however, the role of the post insulator is changing. Traditional systems often depend on numerous porcelain or polymer insulators, separate fittings, structural foundations, and complicated alignment procedures. Newer insulated tubular busbar systems can simplify this arrangement by integrating mechanical support, electrical insulation, and protection into a more compact structure.

This development does not eliminate the importance of post insulator technology. Instead, it creates a more advanced relationship between post insulators, tubular busbars, support brackets, and insulated conductor systems. In some applications, a tubular busbar can be directly fixed to steel structures or concrete supports, reducing the number of conventional post insulators required. In other applications, specially designed post insulators remain necessary for equipment interfaces, terminal supports, outdoor connections, switchgear transitions, and locations exposed to high mechanical or environmental stress.

A high-quality post insulator must therefore do more than provide basic insulation. It must withstand electrical stress, short-circuit forces, vibration, seismic loads, pollution, temperature variation, moisture, and long-term mechanical loading. It must also be compatible with the overall busbar structure and the installation requirements of modern substations, renewable energy stations, industrial plants, rail transit systems, and large commercial facilities.

Jiangsu Wopeng Power Technology Co., Ltd. develops and manufactures high and low voltage busbar systems, including aluminum alloy tubular busbars, copper and aluminum tube busbars, epoxy resin vacuum-cast tubular busbars, low-voltage cast resin busways, wind power tube busbars, compact busbar systems, and sliding contact line systems. Its engineering capabilities provide a strong foundation for supplying post insulators and integrated support solutions for electrical systems that demand high mechanical strength, dependable insulation, and efficient installation.

Post Insulator

1. What Is a Post Insulator?

A post insulator is a rigid insulating component used to support energized conductors, bus bars, disconnecting devices, and other electrical equipment. It maintains a defined distance between the live conductor and the grounded support structure while resisting the mechanical forces applied to the conductor.

Unlike suspension insulators, which are normally arranged in strings and allow a conductor to hang from a supporting structure, post insulators generally provide a fixed and rigid support. They are commonly installed vertically, horizontally, or in customized arrangements depending on the equipment design. Their rigid construction makes them suitable for busbar supports, switchgear assemblies, substation connections, transformer terminals, and industrial distribution equipment.

The insulating body may be produced from electrical porcelain, toughened glass, epoxy resin, silicone rubber, or other engineered composite materials. The selected material affects the insulator’s mechanical strength, pollution performance, weight, hydrophobicity, thermal stability, and resistance to aging.

In a conventional electrical installation, the post insulator performs two primary functions. First, it supports the conductor against gravity, wind, vibration, electromagnetic forces, and short-circuit forces. Second, it electrically separates the conductor from the grounded structure and neighboring phases. In a modern insulated tubular busbar system, these functions may be distributed between the busbar body, the insulation layer, the support bracket, and localized post insulators.

Core Working Principle

The working principle of a post insulator is based on the high electrical resistance and dielectric strength of its insulating material. When a conductor is energized, the insulator prevents current from flowing to the grounded steel frame, concrete support, equipment enclosure, or neighboring phase. The insulation must maintain its performance under normal operating voltage, switching surges, lightning impulses, temporary overvoltage, humidity, pollution, and temperature changes.

At the same time, the insulator must transmit mechanical loads to the supporting structure without excessive deformation or cracking. The mechanical design must consider conductor weight, installation tension, wind load, thermal expansion, earthquake acceleration, and the electrodynamic forces generated during short circuits.

A reliable post insulator therefore combines electrical insulation with structural rigidity. The best design is not simply the largest or thickest insulator. It is a product correctly matched to voltage level, creepage distance, mechanical load, installation arrangement, environmental conditions, and the busbar system in which it will operate.

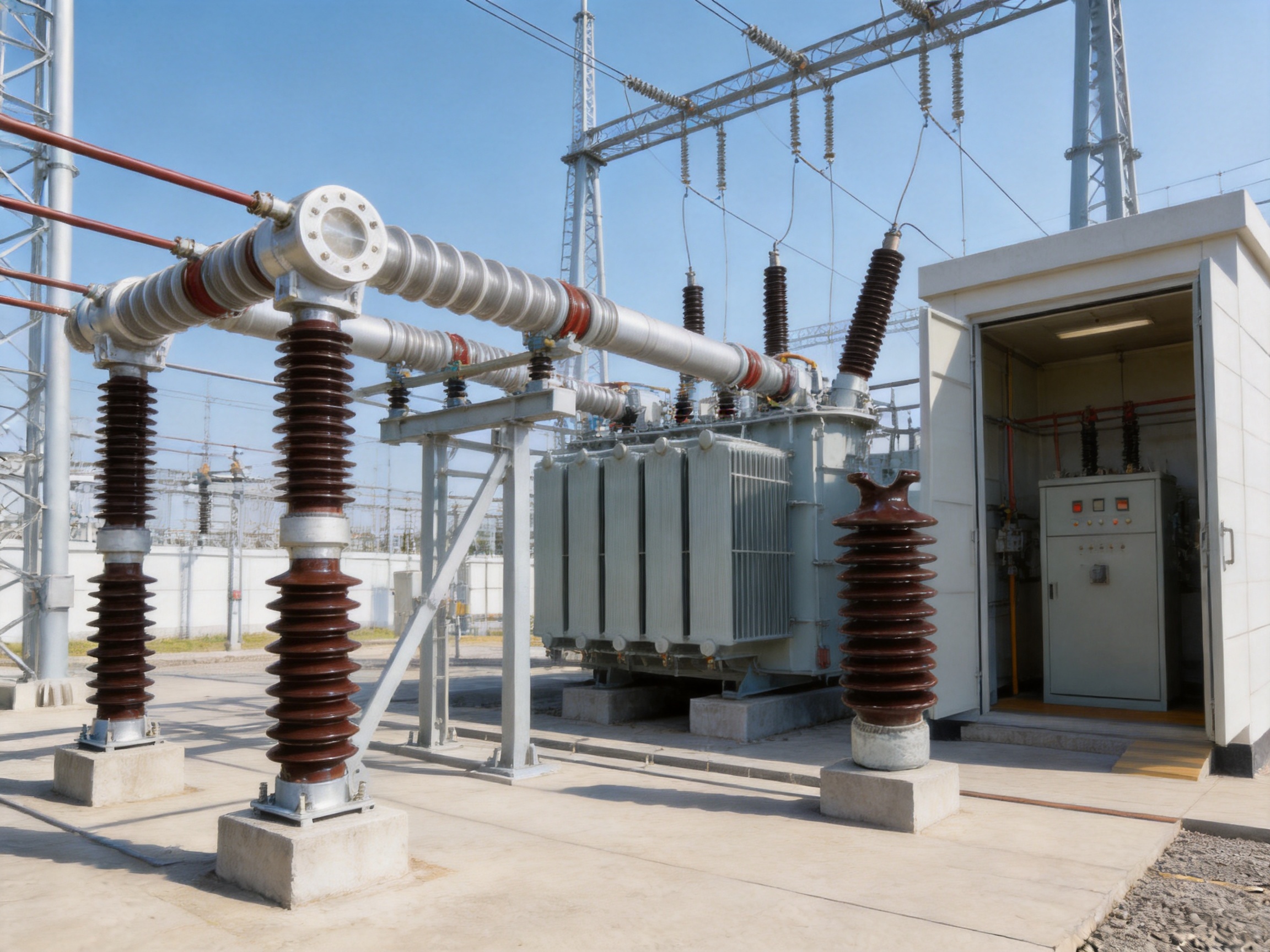

2. The Role of Post Insulators in Tubular Busbar Systems

Tubular busbars are increasingly used in medium-voltage and high-current power systems because their circular cross-section provides high mechanical efficiency and excellent resistance to short-circuit forces. When the tubular busbar is fully insulated, it can also provide a protected electrical path with reduced exposure to dust, moisture, accidental contact, and external contamination.

In a traditional rectangular busbar arrangement, separate post insulators are often installed at relatively short intervals. These insulators support the busbar and maintain phase clearances. Additional fittings, wall bushings, foundations, and alignment components may be required at equipment interfaces and building penetrations.

An insulated tubular busbar can simplify this structure. The busbar may be directly fixed to steel structures or concrete supports by dedicated brackets. The insulation is integrated around or within the tubular conductor, while the bracket transfers mechanical loads to the supporting structure. This arrangement can reduce the need for conventional post insulators and lower the number of separate components in the installation.

This structural optimization offers several benefits:

• Reduced installation complexity and shorter construction time.
• Fewer separate fittings, foundations, and alignment points.
• Lower exposure to contamination and accidental contact.
• Improved resistance to vibration and mechanical movement.
• Longer support spans than many conventional rectangular busbar layouts.
• More compact connections to switchgear, reactors, and high-voltage rooms.
• Reduced maintenance requirements for exposed insulation components.

Although the integrated tubular busbar design can reduce the quantity of post insulators, it does not remove the need for engineering judgment. Post insulators may still be required at terminals, equipment transitions, expansion points, special support locations, outdoor interfaces, or areas where the busbar is not fully self-supporting. The correct approach is to use an integrated system design that places each insulating and supporting element where it provides the greatest technical value.

Direct Connection to Electrical Equipment

One important advantage of an insulated tubular busbar is its ability to connect directly to high-voltage rooms, indoor current-limiting reactors, and 10 kV switchgear cabinets. Direct connection reduces intermediate structures and can simplify the overall arrangement of the power station or substation.

In a conventional layout, the connection between a busbar and switchgear may require several post insulators, flexible connectors, conductor clamps, support steel, and transition fittings. Each additional component introduces installation tolerances and potential inspection points. A tubular busbar system can consolidate these functions into a more controlled assembly, reducing the number of mechanical and electrical interfaces.

Direct connection is particularly valuable where space is limited or where equipment must be arranged in a compact indoor room. It can also reduce the distance between the busbar and the protected equipment, helping engineers optimize voltage clearances, conductor routing, and fault containment.

3. Structural Performance and Support Span

The circular geometry of a tubular busbar gives it a favorable strength-to-weight ratio. Compared with a flat rectangular bar of similar material volume, a tube can provide greater resistance to bending and torsional deformation. This allows the busbar to withstand significant mechanical forces while maintaining a relatively compact profile.

For the insulated tubular busbar system described in the supplied technical data, the allowable stress is approximately four times that of rectangular busbars under comparable design conditions. This high allowable stress supports longer spans and reduces the number of intermediate support points.

Under a short-circuit current of 50 kA, a Φ100 × 6 mm tubular busbar can achieve a suspended span of up to 9 meters. When supported by dedicated busbar brackets, the span can reach up to 13 meters. These values demonstrate the structural efficiency of the tubular design and can provide substantial savings in steelwork, foundations, fittings, and installation labor.

Typical Structural Characteristics of the Insulated Tubular Busbar Arrangement

Item	Reference Value or Feature	Engineering Benefit
Tubular busbar size	Φ100 × 6 mm	High bending and short-circuit resistance
Short-circuit current reference	50 kA	Suitable for demanding power system conditions
Suspended span	Up to 9 m	Fewer intermediate supports
Bracket-supported span	Up to 13 m	Reduced structural complexity
Bracket spacing	Not less than 275 mm where applicable	Improved support stability and clearance control
Fixed bracket requirement	Recommended for spans from 6 m to 13 m	Controls movement and thermal expansion

Actual support spacing and span limits must always be verified through detailed engineering calculations. Factors such as conductor material, operating temperature, installation orientation, wind loading, seismic requirements, fault duration, phase arrangement, and support stiffness can affect the final design.

4. Mechanical and Electrical Advantages Over Conventional Busbar Systems

Higher Mechanical Efficiency

Rectangular busbars are widely used because they are simple to manufacture and connect. However, their flat profile can be less efficient when exposed to bending, torsion, vibration, and short-circuit forces. The outer edges may also create local stress concentrations around clamps and supports.

A tubular busbar distributes mechanical stress around its circumference. This improves resistance to bending and provides a more uniform load path. The result is a structure that can support longer spans and tolerate greater electrodynamic forces without excessive deflection.

Better Short-Circuit Performance

When a short circuit occurs, parallel conductors experience strong electromagnetic attraction or repulsion. These forces can be several times greater than the normal static load of the conductor. If the support arrangement is not sufficiently rigid, excessive movement may reduce phase clearance, damage fittings, or transfer high loads to equipment terminals.

The high mechanical strength of an insulated tubular busbar helps maintain conductor position during a fault. A carefully engineered bracket and support system further reduces movement. This is an important advantage for substations, generator connections, industrial plants, and renewable energy facilities where high fault currents may be present.

Reduced Number of Components

Traditional busbar installations may include post insulators, clamps, steel frames, wall bushings, flexible connectors, foundation plates, and multiple alignment elements. The number of components increases with the length and complexity of the busbar route.

A fully insulated tubular busbar can combine several functions into a more integrated assembly. The busbar provides the current path and insulation, while dedicated brackets provide mechanical support. Fewer components mean fewer opportunities for incorrect installation, loose connections, dimensional errors, and long-term maintenance problems.

Improved Installation Efficiency

Traditional post insulator installation may involve foundation construction, surface preparation, leveling, vertical alignment, tightening of multiple fasteners, and repeated dimensional checks. Each support point must be accurately positioned to maintain conductor geometry and phase clearance.

Dedicated tubular busbar brackets can standardize the support procedure. When the supporting steelwork is prepared correctly, the busbar can be installed with a more predictable sequence and fewer individual alignment operations. This can shorten the construction period and reduce dependence on complex site adjustments.

Lower Maintenance Requirements

Exposed porcelain or polymer post insulators may require periodic inspection for contamination, cracks, surface damage, mechanical looseness, and signs of flashover. In heavily polluted areas, cleaning may be necessary to restore insulation performance.

Fully insulated tubular busbars protect much of the energized conductor and reduce the amount of exposed insulation surface. This can lower contamination accumulation and reduce maintenance frequency. The support brackets and terminal areas still require inspection, but the overall system can be easier to maintain than a large arrangement of discrete open conductors and insulators.

5. Seismic and Vibration Performance

Electrical systems installed in seismic regions must remain safe and functional during and after an earthquake. The design must account for horizontal and vertical acceleration, vibration frequency, cyclic loading, conductor movement, support deformation, and the interaction between busbars and connected equipment.

The post insulator and tubular busbar design described in the supplied materials considers a horizontal acceleration of 0.20 g, a vertical acceleration of 0.15 g, a vibration frequency of 20 Hz, and tolerance to three sine wave cycles. The stated safety factor is greater than 1.67. These parameters are intended to support normal operation under simultaneous seismic and short-circuit conditions.

Seismic performance depends on the complete system rather than one component alone. The busbar, insulation body, mounting bracket, anchor bolts, steel support, concrete foundation, equipment connection, and expansion arrangement must work together. A strong insulator cannot compensate for an inadequately anchored support frame, and a robust busbar cannot ensure reliability if terminal equipment is allowed to move excessively.

Importance of Fixed Brackets

Fixed brackets are particularly important for longer spans. For spans from 6 to 13 meters, fixed brackets help control longitudinal and lateral movement. They also limit the displacement that may occur under short-circuit forces, wind loading, vibration, and thermal expansion.

The location and number of fixed brackets must be determined according to the busbar route and the manufacturer’s engineering recommendations. Other support points may need to accommodate controlled thermal movement, especially on long indoor or outdoor runs. A balanced combination of fixed and sliding support points can prevent excessive stress from being transferred to connected equipment.

Vibration Resistance

Vibration may originate from rotating machinery, transformers, reactors, wind turbines, switching operations, transport systems, or external industrial equipment. Repeated vibration can loosen fasteners, fatigue metal fittings, damage insulation interfaces, and create progressive mechanical wear.

The direct fixation of an insulated tubular busbar to steel or concrete supports provides a rigid load path. When combined with correctly designed brackets and fasteners, this arrangement can provide strong vibration resistance. The system should still be checked for resonance, dynamic amplification, support stiffness, and the vibration characteristics of adjacent equipment.

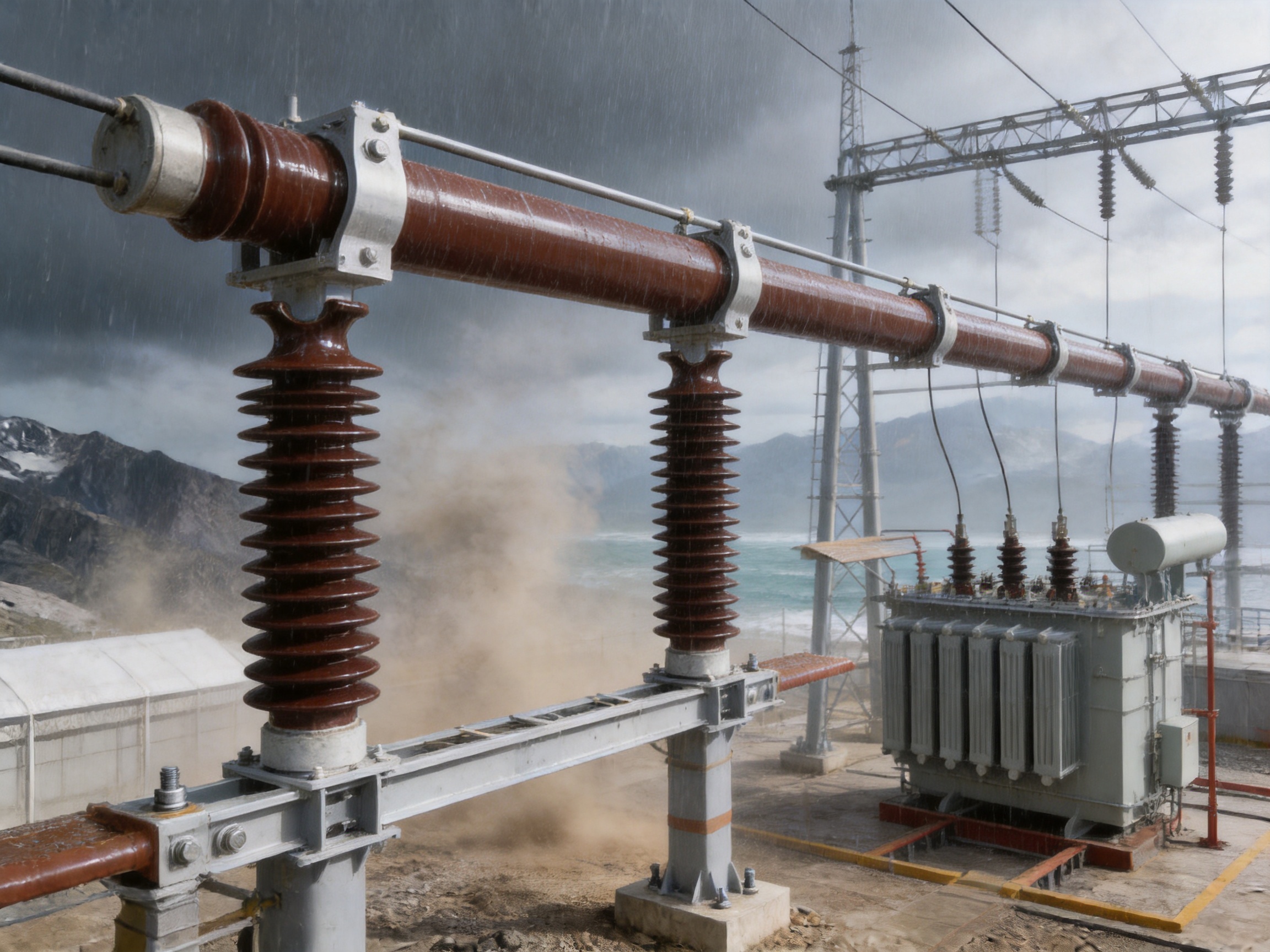

6. Environmental Adaptability

Electrical insulation does not operate in a laboratory environment. Outdoor and industrial installations may experience rain, fog, salt, dust, chemical pollutants, ultraviolet radiation, freezing conditions, high temperatures, and rapid changes in humidity. These factors can reduce surface insulation performance and accelerate material aging.

Pollution Severity Class V

The supplied technical information identifies suitability for pollution severity class V, representing a heavy-pollution environment. In such locations, conductive deposits can form on the surface of an insulator. When the surface becomes wet, leakage current may increase and dry-band arcing can occur. If the creepage distance and surface profile are insufficient, a flashover may develop.

The design creepage distance ratio is stated as 31 mm/kV. After creepage extenders are installed on outdoor terminals, the total creepage distance is not less than 680 mm. These measures help increase the leakage path and reduce the risk of pollution flashover.

For severe environments, the complete insulation design should consider local pollution, altitude correction, rainfall patterns, salt contamination, industrial emissions, and cleaning access. Silicone rubber composite components may offer additional advantages because of their hydrophobic surface properties. Porcelain remains valuable where high rigidity, dimensional stability, and long service life are priorities.

High-Altitude Operation

The system is suitable for altitudes up to 4,000 meters according to the supplied product information. At higher elevations, air density decreases and the external insulation performance of air gaps may be reduced. Engineers must verify phase-to-ground clearance, phase-to-phase clearance, impulse withstand requirements, and correction factors for the installation altitude.

High-altitude projects may also involve intense ultraviolet exposure, large temperature differences, strong wind, and difficult maintenance access. Material selection, sealing, surface protection, and mechanical design must therefore be evaluated together rather than independently.

Outdoor Terminal Protection

Outdoor terminals are often more exposed than the main protected busbar body. Creepage extenders, weather sheds, sealing elements, and carefully designed terminal insulation can improve performance at these transition points. The interface between a fully insulated tubular busbar and open electrical equipment should be designed to prevent moisture ingress, excessive electric field concentration, and contamination accumulation.

7. Materials Used for Post Insulators

Electrical Porcelain

Electrical porcelain has been used in power systems for generations. It provides high compressive strength, good resistance to weathering, and stable electrical performance across a wide voltage range. Porcelain post insulators are available for low-voltage, medium-voltage, and high-voltage applications, including systems up to very high transmission voltage levels.

Porcelain is relatively rigid and dimensionally stable. It is well suited to installations where mechanical stiffness is important and where the support must maintain precise conductor geometry. Its limitations include higher weight, brittleness under impact, and a surface that may require cleaning in heavily polluted areas.

Toughened Glass

Toughened glass offers high visibility of surface damage and strong electrical performance. It is more commonly associated with suspension and tension insulator applications, although glass-based components can be used in specific support designs. Its use depends on the mechanical configuration, voltage level, environmental requirements, and local standards.

Epoxy Resin

Epoxy resin is widely used in modern insulated busbar systems. Vacuum-cast epoxy can produce a compact, accurately shaped insulation layer with strong adhesion and good resistance to moisture and mechanical stress. It is particularly suitable for tubular busbars and cast resin busway systems where the insulation must closely follow the conductor profile.

Epoxy resin insulation can reduce the need for exposed support insulators because the insulation is integrated into the busbar assembly. Vacuum casting also helps minimize voids and improve consistency when the process is carefully controlled.

Silicone Rubber and Composite Materials

Composite post insulators generally consist of a high-strength core, commonly made from fiberglass-reinforced polymer, and a silicone rubber housing. They are lightweight, resistant to impact, and capable of providing excellent hydrophobicity. The water-repellent surface can help reduce leakage current and improve anti-pollution performance.

Composite insulators are especially useful where low weight, high burst resistance, transportation convenience, and pollution performance are important. Their long-term suitability depends on the quality of the silicone material, core design, interface sealing, resistance to tracking and erosion, and control of manufacturing processes.

Comparison of Common Post Insulator Materials

Material	Typical Strengths	Possible Limitations	Common Applications
Electrical porcelain	High rigidity, stable dimensions, long service history	Heavy and vulnerable to impact damage	Substations, switchgear, busbar supports
Toughened glass	Strong dielectric performance and visible damage behavior	Application-specific mechanical limitations	Selected transmission and support applications
Epoxy resin	Compact insulation, accurate molding, strong integration with busbars	Process quality and thermal design are critical	Cast resin busbars and insulated tubular busbars
Silicone rubber composite	Lightweight, hydrophobic, high impact resistance	Requires careful aging and interface control	Polluted outdoor areas and compact equipment

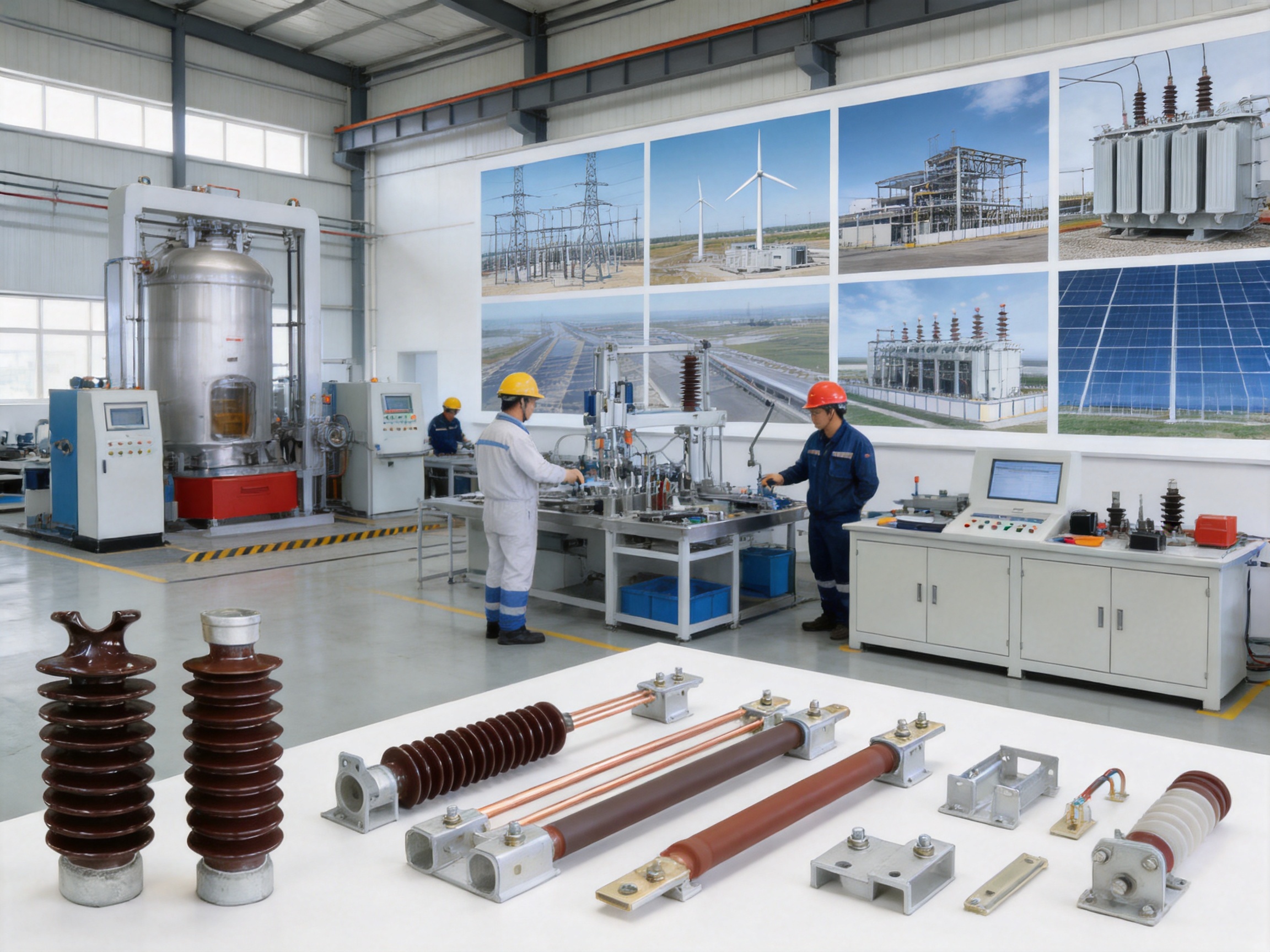

8. Manufacturing Technology and Quality Control

The performance of a post insulator or insulated tubular busbar depends heavily on manufacturing quality. Electrical insulation is sensitive to defects that may not be visible during a basic visual inspection. Voids, cracks, poor bonding, contamination, dimensional deviations, improper curing, and weak terminal interfaces can reduce service life or cause failure under electrical stress.

Jiangsu Wopeng Power Technology operates modern production lines equipped with vacuum casting systems, CNC machining equipment, and automated assembly technologies. These capabilities support the production of accurately formed insulation structures, precision-finished metal components, and consistent busbar assemblies.

Vacuum Casting

Vacuum casting is important for epoxy resin insulation because it helps remove air and gas from the resin before and during the molding process. Reducing voids improves dielectric reliability and helps prevent partial discharge, localized heating, and mechanical weakness.

A controlled vacuum casting process normally requires accurate resin preparation, moisture control, temperature management, mold cleanliness, correct filling speed, and carefully defined curing conditions. The casting parameters must be monitored to ensure that the insulation fully surrounds the conductor and bonds correctly to the intended surfaces.

For tubular busbars, the geometry of the mold and the conductor position are especially important. Uneven insulation thickness can create electrical field concentration and nonuniform thermal behavior. Precision tooling and process monitoring help maintain the specified dimensions throughout production.

CNC Machining

CNC machining supports the production of conductor ends, terminal interfaces, brackets, clamps, support plates, and other metal components. Accurate machining is important because a small dimensional error at a connection point can affect contact resistance, alignment, mechanical stress, and installation safety.

Machined components can be produced according to project-specific drawings and tolerances. This is valuable for custom busbar routes, unusual equipment interfaces, retrofit installations, and projects requiring special mounting arrangements.

Automated Assembly

Automated assembly improves repeatability and reduces the variation associated with manual operations. It can help control the positioning of insulation layers, fasteners, connectors, seals, and support components. Automation also supports production traceability and more consistent inspection records.

Automation does not replace engineering expertise. Instead, it provides a stable manufacturing platform on which trained engineers and production specialists can apply approved designs, process specifications, and inspection standards.

Electrical and Mechanical Testing

Each product undergoes standardized inspection processes that may include high-voltage tests, insulation tests, mechanical verification, dimensional inspection, and routine quality checks. Testing collaboration with third-party institutions provides additional independent validation of safety and performance.

Typical verification activities for post insulators and insulated busbar systems may include:

• Power-frequency withstand voltage testing.
• Impulse withstand voltage testing where required.
• Insulation resistance measurement.
• Partial discharge inspection for cast resin products.
• Conductor resistance and contact resistance testing.
• Mechanical bending and load verification.
• Thermal performance and temperature-rise testing.
• Dimensional and visual inspection.
• Sealing and environmental checks.
• Routine production traceability and documentation review.

9. Engineering Design Considerations

Selecting a post insulator or tubular busbar support cannot be based only on rated voltage. A complete technical evaluation should consider the electrical, mechanical, environmental, installation, and maintenance requirements of the project.

Rated Voltage and Insulation Level

The first step is to identify the system voltage, highest equipment voltage, power-frequency withstand requirement, lightning impulse withstand requirement, and switching impulse requirement where applicable. The insulation coordination must include both the post insulator and adjacent equipment.

The product information indicates that post insulator solutions can be designed for applications from low voltage to high voltage levels, with product families extending to very high voltage systems. The exact rating must be confirmed for each model and project configuration.

Mechanical Load

Mechanical load may include vertical conductor weight, horizontal conductor tension, wind pressure, earthquake force, thermal movement, and short-circuit electrodynamic force. The required bending strength may range from a few kilonewtons to substantially higher values depending on the design.

The supplied product information identifies standard bending load capabilities ranging from approximately 2 kN to 20 kN for different post insulator designs. The appropriate value must be selected based on the calculated service and fault loads, with suitable safety margins.

Clearance and Creepage Distance

Clearance is the shortest distance through air between two conductive parts. Creepage distance is the shortest path along the surface of the insulating material. Both are important, but creepage becomes particularly critical in humid and polluted environments.

Increasing creepage distance alone is not always sufficient. The surface profile, shed shape, material hydrophobicity, electric field distribution, and cleaning conditions also affect performance. For outdoor terminals, creepage extenders can provide additional surface distance where the main busbar insulation is not exposed to the same environment.

Thermal Expansion

Busbar conductors expand as their temperature rises. A long rigid busbar route can generate significant forces if thermal movement is completely restrained. The support system should therefore distinguish between fixed support points and guided or sliding support points where appropriate.

Terminal connections to transformers, reactors, switchgear, and wall penetrations require special attention. Excessive thermal force may damage equipment bushings or transfer stress to the busbar insulation. Proper expansion design helps maintain reliability over repeated load cycles.

Installation Location

Indoor installations generally provide better protection from weather and pollution, while outdoor systems require greater attention to water drainage, ultraviolet exposure, contamination, corrosion, and temperature variation. Coastal and industrial locations may require special materials, increased creepage distance, surface protection, or additional shielding.

Altitude, seismic category, access for maintenance, transport limitations, and available support steel should also be considered during product selection.

10. Installation and Maintenance Recommendations

Installation Preparation

Before installation, the foundation, steel structure, equipment terminals, and support brackets should be checked against the approved drawings. Anchor positions, bracket elevations, busbar centerlines, phase spacing, and connection dimensions must be verified.

The installation area should be clean and dry. Insulation surfaces must be protected from impact, sharp tools, oil, metal filings, and construction dust. Components should not be dragged across concrete or placed directly on contaminated ground.

Bracket Installation

Dedicated tubular busbar brackets should be installed at the specified locations. The reference spacing is not less than 275 mm where required by the system design. Fixed brackets should be used for spans from 6 to 13 meters or wherever the engineering design requires positive movement control.

Fasteners must be tightened using the specified torque. Under-tightening can cause looseness and vibration, while over-tightening may deform components or damage insulation. The bracket should support the busbar without creating concentrated mechanical stress on the insulation layer.

Alignment and Connection

Busbar sections should be aligned before final tightening of terminal connections. Forced alignment should be avoided because it can introduce permanent stress into the conductor, insulation, or connected equipment. Flexible connectors or expansion arrangements should be installed where required by the design.

Electrical contact surfaces must be clean and properly prepared. Contact resistance can increase if oxide, dust, grease, or improper surface treatment remains at the joint. The connection should be inspected after tightening and verified according to the project quality plan.

Routine Inspection

Routine maintenance should include visual inspection of brackets, fasteners, terminal areas, insulation surfaces, grounding connections, and signs of overheating. Particular attention should be given to outdoor terminals, areas exposed to pollution, and locations near vibration sources.

Inspection intervals depend on the environment and operating importance of the installation. Systems in coastal, chemical, dusty, or heavy-industrial areas may require more frequent checks than systems in clean indoor rooms.

Cleaning and Testing

Where exposed insulation becomes contaminated, cleaning should be performed according to the manufacturer’s instructions and site safety procedures. Energized cleaning must only be carried out by qualified personnel using approved methods.

Electrical testing may include insulation resistance measurement, thermographic inspection, contact resistance testing, and specialized high-voltage or partial discharge testing when required. Any crack, tracking mark, abnormal discharge sound, corrosion, or discoloration should be investigated promptly.

11. Application Fields

Substations

Substations use post insulators and insulated tubular busbars to connect transformers, circuit breakers, reactors, disconnectors, and outgoing feeders. The high mechanical strength and long support span of tubular busbars can help reduce the size of the busbar yard and simplify equipment arrangement.

Industrial Power Distribution

Large manufacturing plants often require high-current distribution over relatively long distances. An insulated tubular busbar can provide a compact and reliable connection between transformers, switchgear, motors, furnaces, and process equipment. The enclosed structure can improve safety in areas where personnel, dust, moisture, or mechanical activity are present.

Wind Power Stations

Wind power systems experience vibration, fluctuating loads, restricted installation space, and demanding environmental exposure. Tubular busbars are suitable for transformer and generator connections where high current must be transmitted through compact structures. Post insulator and bracket designs must be selected to accommodate vibration and movement associated with wind turbine operation.

Rail Transit

Rail transit facilities require dependable power distribution, compact equipment, and strong resistance to vibration. Busbar systems and support insulators may be used in traction substations, station power rooms, maintenance depots, and auxiliary distribution systems.

Commercial and Infrastructure Projects

Large commercial buildings, data centers, airports, hospitals, and public infrastructure projects require reliable and maintainable electrical systems. Compact insulated busbars can save space and reduce the number of exposed live components. Their standardized installation can also support faster project construction and easier future expansion.

Renewable Energy and Transformer Stations

Solar power plants, wind farms, energy storage facilities, and transformer stations often use medium-voltage and high-current connections in outdoor or semi-outdoor environments. Environmental adaptability, corrosion resistance, insulation coordination, and simplified maintenance are important advantages in these projects.

12. Manufacturing Strengths and Customization Capability

Jiangsu Wopeng Power Technology Co., Ltd. was founded in 2018 as a specialized high-tech enterprise focused on high and low voltage busbar systems. Its product range covers applications from low voltage to 35 kV and includes high-current systems for critical operating conditions.

The company’s engineering team includes experienced engineers, technical specialists, and production professionals with expertise in power equipment technology. This combination of design capability and manufacturing experience is important for post insulator and tubular busbar projects because each installation may involve different voltage levels, support spans, equipment interfaces, pollution conditions, and seismic requirements.

Its production portfolio includes 35 kV epoxy resin vacuum-cast tubular busbars, low-voltage epoxy-cast busbar trunking, copper and aluminum tubular busbars, wind power tube busbars, compact busbar systems, and sliding contact line power supply systems. This broad product base allows the company to evaluate post insulators as part of a complete power transmission solution rather than as an isolated component.

Customization may involve conductor material, cross-sectional dimensions, insulation thickness, support bracket design, terminal configuration, creepage distance, connection method, enclosure or exposure arrangement, and project-specific mechanical requirements. OEM production is particularly valuable for system integrators, electrical contractors, switchgear manufacturers, transformer companies, and international distributors.

Modern manufacturing lines equipped with vacuum casting systems, CNC machining equipment, and automated assembly technologies support both repeat production and project-specific designs. Standardized inspection processes and third-party testing cooperation provide additional confidence for customers requiring documented performance.

13. Why an Integrated Product Approach Is More Competitive

Post insulators from different suppliers may appear similar when evaluated only by dimensions or rated voltage. However, actual system performance depends on how the insulator interacts with the conductor, bracket, terminal, insulation coordination, support structure, and maintenance plan.

An integrated tubular busbar approach provides several competitive advantages over a conventional component-by-component design.

• It reduces the number of independent parts that must be designed and installed.
• It can provide longer support spans and reduce structural steel requirements.
• It helps control phase arrangement and conductor alignment.
• It can reduce exposure to pollution, moisture, and accidental contact.
• It supports direct connections to switchgear, reactors, and high-voltage rooms.
• It can reduce installation labor and shorten project schedules.
• It allows mechanical, electrical, and environmental requirements to be evaluated together.
• It provides a clearer path for factory testing and quality documentation.

Compared with a traditional rectangular busbar system using many separate post insulators, the tubular solution can offer stronger mechanical efficiency and a cleaner layout. Compared with a basic insulated conductor without a robust support design, the engineered tubular busbar system provides better control of short-circuit forces, vibration, thermal movement, and installation geometry.

The most important competitive advantage is not simply the replacement of one insulator with another. It is the optimization of the complete electrical structure. By combining reliable insulation materials, strong tubular conductors, precision brackets, controlled manufacturing, and project-specific engineering, the system can deliver improved reliability at a lower lifecycle cost.

14. Frequently Asked Questions

Q1: What is the main function of a post insulator?

A post insulator supports energized conductors or busbars while electrically isolating them from grounded structures and neighboring phases. It must withstand both electrical voltage and mechanical loading.

Q2: Can an insulated tubular busbar eliminate post insulators completely?

In some structural arrangements, an insulated tubular busbar can be directly fixed to steel or concrete supports, substantially reducing the number of conventional post insulators. However, post insulators or equivalent insulating supports may still be required at terminals, equipment interfaces, outdoor transitions, and special mechanical support points.

Q3: What is the advantage of a tubular busbar over a rectangular busbar?

A tubular busbar generally provides higher mechanical efficiency, better resistance to bending and torsion, improved short-circuit performance, and longer possible support spans. It can also support a more compact and integrated insulation arrangement.

Q4: What span can a Φ100 × 6 mm tubular busbar achieve?

Under a reference short-circuit current of 50 kA, the supplied technical information indicates a suspended span of up to 9 meters and a bracket-supported span of up to 13 meters. The final allowable span must be confirmed through project-specific calculations.

Q5: When are fixed brackets required?

Fixed brackets are recommended for spans from 6 to 13 meters and wherever movement must be positively controlled. Their exact location should be determined according to thermal expansion, short-circuit force, vibration, seismic conditions, and equipment connection requirements.

Q6: Are post insulators suitable for polluted environments?

Yes. The appropriate product can be designed for polluted environments, including heavy-pollution conditions. Creepage distance, shed profile, hydrophobicity, material selection, terminal protection, and cleaning access must all be considered.

Q7: Can silicone rubber post insulators be used outdoors?

Silicone rubber composite post insulators are often suitable for outdoor use because they are lightweight, hydrophobic, and resistant to pollution flashover. Their suitability depends on the voltage level, mechanical load, environmental exposure, and quality of the composite design.

Q8: What materials are available for post insulators?

Common materials include electrical porcelain, toughened glass, epoxy resin, fiberglass-reinforced polymer, and silicone rubber composite structures. The correct material depends on mechanical strength, voltage, pollution, weight, impact resistance, and service conditions.

Q9: What tests should be requested from a manufacturer?

Customers should request applicable type test reports, routine test records, insulation test results, mechanical verification, dimensional inspection documents, and quality certificates. For cast resin products, partial discharge and high-voltage testing may also be important.

Q10: What is the expected service life of a high-quality post insulator?

Under suitable operating conditions and proper maintenance, high-quality post insulators may provide a service life of approximately 20 to 40 years. Actual life depends on material quality, loading, pollution, ultraviolet exposure, moisture, installation quality, and maintenance.

Q11: Can the product be customized for OEM projects?

Yes. Customization may include dimensions, conductor material, insulation structure, terminal arrangement, bracket design, creepage distance, voltage level, mechanical load, and installation geometry. Engineering review is required before production.

Q12: Is the system suitable for high-altitude installations?

The supplied product information indicates suitability for altitudes up to 4,000 meters. High-altitude projects must still include insulation coordination and clearance verification based on the actual installation elevation.

Conclusion

Post insulators remain fundamental to the safe operation of electrical systems, but modern power equipment increasingly requires more than a conventional support component. High current, long spans, severe pollution, seismic activity, vibration, limited installation space, and strict maintenance requirements are driving the development of integrated tubular busbar solutions.

Insulated tubular busbars can reduce the dependence on separate post insulators by combining conductor insulation, mechanical efficiency, and simplified support structures. Their high allowable stress, strong short-circuit performance, long support spans, direct equipment connection capability, and environmental adaptability provide clear advantages over many conventional rectangular busbar arrangements.

For applications where post insulators are still required, advanced materials such as epoxy resin, porcelain, silicone rubber, and composite structures provide flexible options. The correct choice depends on voltage, load, pollution, altitude, seismic conditions, mechanical design, and installation environment.

Jiangsu Wopeng Power Technology Co., Ltd. supports these requirements through integrated product development, vacuum casting, CNC machining, automated assembly, standardized inspection, third-party testing cooperation, and customized OEM engineering. Its broad busbar product portfolio and manufacturing experience enable customers to obtain coordinated solutions rather than isolated components.

By combining reliable post insulator technology with high-performance insulated tubular busbar systems, modern electrical installations can achieve improved safety, stronger mechanical performance, simpler construction, reduced maintenance, and better lifecycle value.

References

1. IEC 60168, Tests on Indoor and Outdoor Post Insulators of Ceramic Material or Glass for Systems with Nominal Voltages Greater Than 1,000 V.

2. IEC 62271 Series, High-Voltage Switchgear and Controlgear.

3. IEC 60815 Series, Selection and Dimensioning of High-Voltage Insulators Intended for Use in Polluted Conditions.

4. IEC 61462, Composite Insulators for Alternating Current Overhead Lines and Substations.

5. IEC 60071 Series, Insulation Coordination.

6. IEEE Standard 693, Recommended Practice for Seismic Design of Substations.

7. CIGRE Technical Publications on High-Voltage Insulation, Pollution Performance, and Substation Busbar Design.

8. Manufacturer technical data for insulated tubular busbar systems, post insulators, support brackets, and cast resin busbar assemblies.

Product: Post Insulator
