Fixed Bus-Bar Supports for Reliable Tubular Busbar Systems

Bus-bar supports are essential mechanical and electrical components in modern power distribution systems. They hold, align, separate, and stabilize busbars inside switchgear, distribution cabinets, substations, transformer stations, industrial control panels, and renewable energy equipment. Although relatively compact compared with the conductors they support, these components have a direct influence on insulation safety, short-circuit performance, vibration resistance, service life, and the overall reliability of a power distribution installation.

The fixed support type is designed for installations where the busbar must remain securely positioned at a defined point. It is particularly suitable for tubular busbars and aluminum alloy tubular busbar systems that require stable mechanical fixation while maintaining adequate electrical clearances. When properly selected and installed, a fixed bus-bar support prevents conductor movement, controls spacing, reduces vibration, and helps the complete busbar system withstand the forces generated during normal operation and short-circuit conditions.

Jiangsu Wopeng Power Technology Co., Ltd. develops and manufactures busbar systems and associated support hardware for low-voltage, medium-voltage, and high-current applications. Its product range includes fixed support hardware, end caps, tension clamps, steel-cored aluminum strand accessories, epoxy resin cast tube busbars, copper and aluminum tubular busbars, wind power tubular busbars, compact busbar systems, and sliding contact line systems.

This article explains the construction, functions, applications, technical advantages, manufacturing processes, testing methods, selection criteria, and maintenance considerations of fixed bus-bar supports. It also describes why a support component should be evaluated as part of a complete tubular busbar system rather than as an isolated accessory.

Bus-bar Supports (Fixed Support Type)

1. The Role of Fixed Bus-Bar Supports in Electrical Systems

A busbar carries electrical current between incoming power sources, transformers, switchgear, distribution panels, and outgoing feeders. In high-current systems, a busbar may be made from copper, aluminum, or an aluminum alloy and may be manufactured as a solid bar, laminated conductor, enclosed busway, or tubular conductor.

Regardless of the conductor shape, the busbar must remain in a controlled position throughout its service life. The conductor cannot be allowed to sag, rotate, move toward an adjacent phase, or contact a grounded enclosure. This requirement becomes more demanding when the busbar is long, when the system carries high current, or when the installation is exposed to vibration, temperature changes, moisture, dust, and short-circuit forces.

Fixed bus-bar supports perform several important functions:

• They maintain the designed position and spacing of each busbar.
• They provide mechanical fixation between the conductor and the supporting structure.
• They help maintain phase-to-phase and phase-to-ground clearances.
• They resist movement caused by electromagnetic forces during short circuits.
• They reduce vibration and mechanical stress at connection points.
• They support safe installation, inspection, and long-term maintenance.
• They contribute to the stability of tubular busbar systems under continuous load.

In a medium-voltage or high-current system, the support is exposed to both mechanical and electrical stresses. The mechanical design must account for the weight of the conductor, installation tolerances, thermal expansion, wind or transportation vibration where applicable, and the electromagnetic forces produced by fault current. The electrical design must account for insulation distance, electric field distribution, leakage paths, corona behavior, and the risk of partial discharge.

A fixed support is therefore more than a simple bracket. It is a coordinated component that must match the busbar diameter, the enclosure geometry, the system voltage, the expected short-circuit current, the environment, and the installation method.

2. Product Structure and Available Hardware

2.1 Type MGG Fixed Hardware

Type MGG fixed hardware is designed for securing tubular busbars in a fixed position. It is compatible with tubular busbar outer diameters from approximately 50 millimeters to 180 millimeters. This range allows the same product family to serve multiple tubular conductor sizes used in power transmission and distribution applications.

The hardware is manufactured from hot-dip galvanized steel components. Galvanizing provides a protective zinc layer that helps isolate the steel substrate from moisture, oxygen, salts, and other corrosive agents. The stated zinc coating thickness is at least 85 micrometers, supporting long-term use in demanding environments when the hardware is correctly installed and maintained.

Type MGG fixed hardware is available in standard and reinforced models. Standard versions are appropriate for ordinary mechanical loads and conventional busbar arrangements. Reinforced versions are intended for applications requiring greater mechanical stability, such as heavy tubular conductors, large phase spacing, high short-circuit forces, or installations subject to stronger vibration.

The fixed hardware is designed with defined dimensional parameters and weight data. This is important for engineering calculations because the support must be incorporated into the overall structural design. Accurate dimensions also assist with bracket fabrication, enclosure planning, installation alignment, and replacement during maintenance.

2.2 Type MGF End Caps

Type MGF end caps are used to seal the ends of tubular busbars. They are available for tubular busbar inner and outer diameter combinations ranging from approximately 50/45 millimeters to 250/230 millimeters. The end caps help protect the interior of the tubular conductor from dust, moisture, foreign objects, and accidental contact.

The end-cap range includes standard types, damping types, and terminal-ball types. Standard end caps are suitable for ordinary sealing requirements. Damping versions incorporate LGJ-series damping wires to improve resistance to vibration and seismic effects. Terminal-ball types are used where the end of the tubular busbar requires a specific termination arrangement or connection geometry.

The damping versions can be equipped with LGJ-240 to LGJ-630 damping wires, depending on the design requirement. These components help control vibration and reduce the risk of mechanical fatigue in applications exposed to repeated movement or external disturbance.

2.3 Tension Clamps for Steel Strands

The product family also includes tension clamps for steel strands. These clamps are available in integral forged designs and universal designs. They are used to secure the tension of steel strands and are compatible with strand diameters from approximately 7.8 millimeters to 16.0 millimeters.

Depending on the model, grip strength ranges from approximately 45 kilonewtons to 187 kilonewtons. The clamps use hot-dip galvanized steel components and are manufactured with standardized dimensional and mechanical parameters. Integral forged designs provide a compact and strong structure, while universal designs can offer broader installation flexibility.

2.4 Support for Steel-Cored Aluminum Strands

Supporting components for steel-cored aluminum strands are designed according to the GB 1179-83 standard. The applicable nominal cross-sections cover approximately 10/2 square millimeters to 240/30 square millimeters. Standardized parameters may include calculated cross-sectional area, outer diameter, direct-current resistance, calculated tensile strength, and calculated weight.

These data are useful when designing transmission or distribution equipment because the accessory must be matched to the conductor’s electrical and mechanical characteristics. Correct matching reduces installation risk and supports consistent performance across the complete conductor assembly.

3. Materials Used in Bus-Bar Support Systems

3.1 Hot-Dip Galvanized Steel Hardware

Hot-dip galvanized steel is used for many mechanical support and connection components. During the galvanizing process, prepared steel components are immersed in molten zinc. The resulting zinc coating provides barrier protection and can also offer sacrificial protection if a small surface area is exposed.

A coating thickness of at least 85 micrometers is specified for the hardware described in the product information. The actual service life depends on the environment, installation quality, contact with dissimilar metals, drainage, and the level of pollution or salt exposure. Nevertheless, hot-dip galvanizing is widely used for outdoor electrical structures because it combines mechanical strength with practical corrosion resistance.

Compared with painted mild steel, galvanized steel offers a more durable protective layer for many industrial environments. It also reduces the need for frequent recoating. For especially aggressive locations, enhanced anti-corrosion coating solutions may be considered in addition to the standard galvanized finish.

3.2 DMC and SMC Insulating Materials

Insulating support bodies used in busbar systems are commonly produced from DMC or SMC composite materials. DMC, or dough molding compound, is a thermosetting composite containing resin, glass fiber, mineral fillers, and other additives. SMC, or sheet molding compound, is also a glass-fiber-reinforced thermosetting material and can provide a higher level of mechanical performance in appropriately designed products.

These materials are valued for their electrical insulation, mechanical strength, flame retardancy, dimensional stability, and resistance to many forms of environmental exposure. They are suitable for fixed support structures where the insulating body must separate a live conductor from a metal frame or adjacent phase.

Typical Comparison of Insulating Support Materials

Material	Insulation Performance	Mechanical Strength	Typical Temperature Resistance	Common Application
DMC	Excellent	High	Approximately -40°C to 180°C	Standard busbar supports and distribution equipment
SMC	Excellent	Very high	Approximately -50°C to 200°C	Reinforced supports and demanding high-load applications
Galvanized steel	Requires insulation interface	High	Suitable for broad industrial temperature ranges	Clamps, brackets, frames, and mechanical hardware

The choice between DMC and SMC depends on the support geometry, expected load, voltage level, temperature, installation environment, and required production volume. A reliable manufacturer should evaluate the complete assembly rather than selecting a material only from a general catalog description.

4. Technical Advantages of the Fixed Support Type

4.1 Broad Tubular Busbar Compatibility

One of the main advantages of the Type MGG fixed hardware is its compatibility with tubular busbar outer diameters from 50 millimeters to 180 millimeters. This broad range reduces the need for multiple unrelated support designs and simplifies the selection process for engineering contractors and equipment manufacturers.

Compatibility with several conductor sizes is especially useful for custom power distribution systems. A project may use different tubular busbar diameters depending on rated current, short-circuit strength, span length, or available installation space. A coordinated support family allows the manufacturer to maintain consistent connection methods, material quality, and inspection procedures across the project.

4.2 Standard and Reinforced Configurations

Not every busbar installation experiences the same mechanical conditions. A compact indoor distribution panel may require a standard support, while a large tubular busbar installation may need additional reinforcement. Providing both standard and reinforced models gives system designers greater flexibility.

Reinforced busbar support systems are beneficial when the busbar is heavy, when the support span is long, or when high prospective short-circuit current produces significant electrodynamic stress. Reinforcement may improve the load path between the conductor, support body, and mounting structure. It can also reduce deflection and help maintain alignment over time.

4.3 Mechanical Strength and Short-Circuit Resistance

When a short circuit occurs, the current flowing through adjacent conductors produces strong electromagnetic forces. These forces can act rapidly and may attempt to push phases apart, pull them together, or twist the busbar assembly. A support that is adequate for static weight may not be adequate for a short-circuit event.

The described hardware is designed with a safety factor of approximately 2.5 and uses finite element analysis to optimize stress distribution. Grip strength across the tension clamp range is approximately 45 to 187 kilonewtons. Support systems can be designed to withstand short-circuit forces up to approximately 3,000 newtons in relevant applications, provided the complete system is correctly engineered and installed.

Finite element analysis helps identify concentrated stress at corners, holes, fillets, clamp interfaces, and transition areas. By improving the geometry in these locations, the manufacturer can reduce local stress and improve the structural reserve of the component.

4.4 Vibration and Fatigue Performance

Vibration may be caused by electromagnetic forces, rotating equipment, wind exposure, transportation, thermal cycling, or seismic activity. Repeated vibration can loosen fasteners, damage interfaces, produce fatigue cracks, and shift the busbar away from its intended position.

The product information states that fatigue life testing meets a requirement of 10 million vibration cycles. Resonance frequencies are controlled outside the operational range of the system. This approach is important because a component may fail prematurely if its natural frequency coincides with a repeated excitation frequency.

Damping end caps equipped with LGJ-series damping wires provide an additional approach to vibration control. The fixed support and damping accessories can therefore be combined to provide both positional stability and improved dynamic performance.

4.5 Corrosion Resistance

Electrical distribution equipment may be installed in coastal regions, chemical plants, industrial workshops, agricultural facilities, tunnels, renewable energy sites, or outdoor substations. In these environments, corrosion can reduce the cross-sectional area of metal parts, weaken threaded connections, increase contact resistance, and make future maintenance difficult.

Hot-dip galvanized steel, surface sandblasting, passivation, and suitable coating solutions help improve corrosion resistance. The product information references 3,000 hours of salt spray testing and the ability to maintain performance in C4-level corrosive environments when the applicable protection system is selected.

Corrosion performance also depends on design details. Drainage paths should prevent water accumulation, contact between dissimilar metals should be evaluated, and damaged coatings should be repaired. Correct storage before installation is equally important because prolonged exposure to condensation or chemicals can affect the component before it is placed into service.

4.6 Low-Temperature Toughness

Busbar systems installed outdoors or in cold industrial regions may experience temperatures as low as -40°C. Materials that become brittle at low temperatures may crack during installation, vibration, or a sudden impact. The stated manufacturing process combines die forging and heat treatment to provide mechanical strength and maintain toughness at low temperatures.

Low-temperature performance is particularly important for galvanized steel hardware because the component may be exposed to impact from tools, transportation handling, thermal contraction, or short-circuit loading. The support design should also accommodate differences in thermal expansion between the conductor, insulating material, steel hardware, and mounting frame.

4.7 Electrical Field and Contact Performance

A support system must not introduce unnecessary electrical losses or create an unfavorable electric field around a high-voltage conductor. The design described for this product family considers electrothermal coupling and seeks to reduce eddy current losses in metallic components.

Electromagnetic force calculations under short-circuit conditions are used to evaluate system stability. Contact resistance is controlled below approximately 50 micro-ohms for applicable conductive interfaces. Anti-corona design is also considered to help prevent partial discharge in high-voltage environments.

The support itself may be insulating or may include a combination of insulating and metallic parts. The complete arrangement must ensure that metallic hardware does not create an unintended current path, excessive heating point, or sharp electric-field concentration. Rounded edges, suitable clearances, controlled interfaces, and appropriate surface quality all contribute to improved electrical performance.

4.8 Environmental Stability

The product information specifies performance testing under temperature cycling from approximately -40°C to 60°C and ultraviolet aging testing up to 2,000 hours. In humid and hot conditions, insulation resistance is stated to remain above 10,000 megaohms for applicable insulating components.

These test conditions are useful indicators of environmental durability. They help evaluate whether the support can maintain its dimensional stability, insulation performance, surface condition, and mechanical integrity after repeated exposure to temperature, humidity, salt, and ultraviolet radiation.

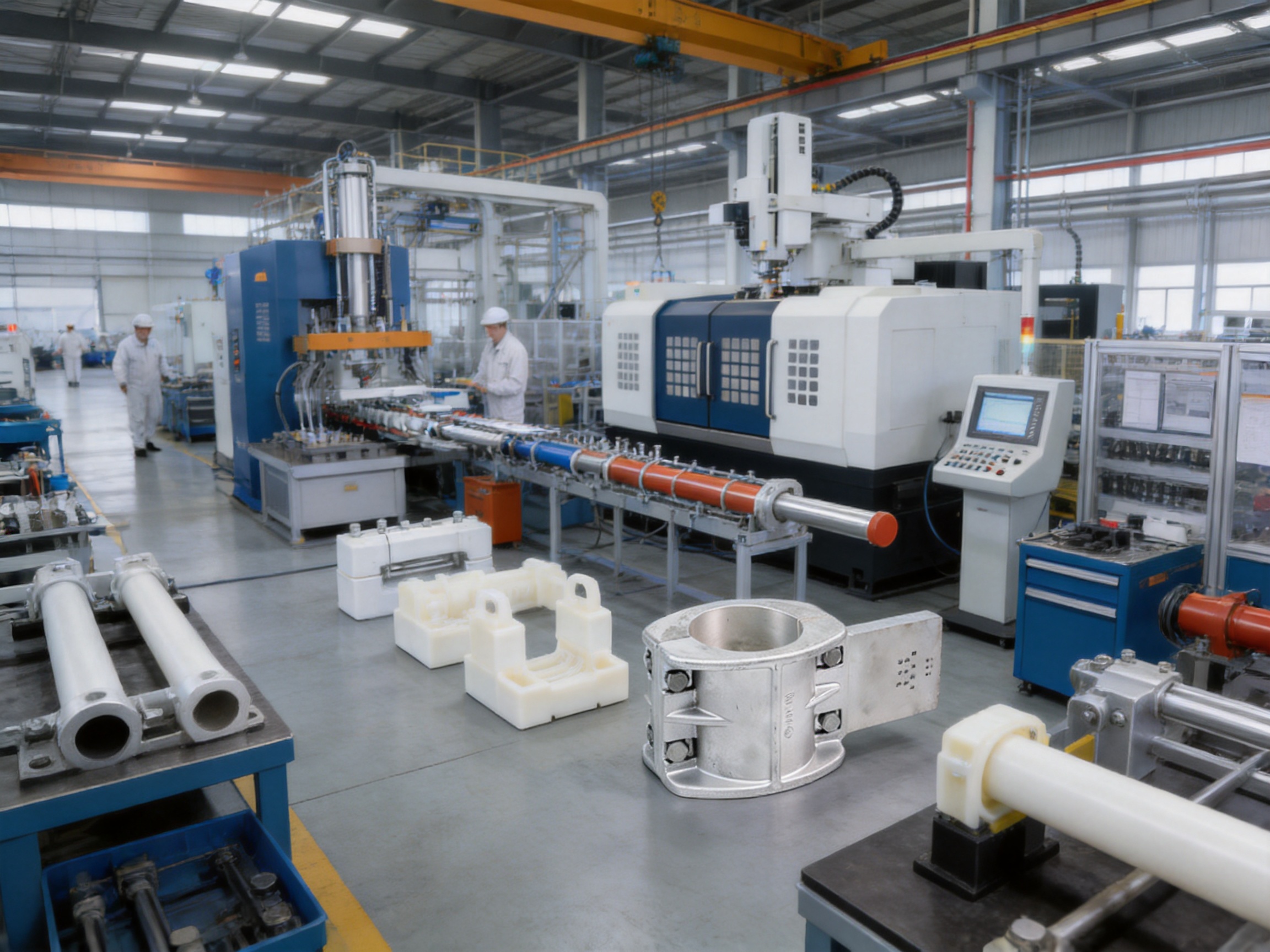

5. Manufacturing Process and Quality Control

5.1 Engineering Design and Product Development

Manufacturing begins with engineering analysis. The design team evaluates the busbar diameter, support spacing, conductor weight, rated voltage, rated current, short-circuit current, installation position, enclosure structure, ambient conditions, and required service life.

Three-dimensional modeling and mechanical calculations are used to define the support profile, bolt arrangement, insulation interface, and load-bearing zones. Finite element analysis can be applied to simulate static loading, short-circuit impact, vibration, and stress concentration. This reduces the risk of relying solely on empirical dimensions.

For customized OEM projects, engineering teams may adapt the support geometry to suit a particular tubular busbar, cabinet, transformer connection, or substation layout. Customization may include support spacing, mounting holes, conductor diameter, insulation material, coating system, terminal geometry, and reinforced structural features.

5.2 Die Forging and Heat Treatment

Die forging is used for selected steel components that require high strength and consistent shape. In this process, heated metal is formed under controlled pressure inside a die. The resulting grain flow can improve mechanical performance compared with some conventional fabrication methods.

Heat treatment is then used to achieve the required balance of hardness, strength, and toughness. Correct control of heating, holding, and cooling conditions is necessary to obtain stable properties across production batches. The objective is not simply to maximize hardness; excessive hardness may reduce toughness and make a component more sensitive to impact or low-temperature cracking.

Forged components are inspected for dimensional accuracy, surface defects, and conformity with the engineering drawing. Critical areas such as clamp bodies, load-bearing sections, and threaded interfaces require particular attention.

5.3 Machining and CNC Processing

Modern CNC machining equipment is used to produce precise holes, grooves, interfaces, and connection surfaces. Accurate machining is important because a misaligned hole or uneven mounting surface can transfer additional stress into the busbar or support body.

CNC processing also improves repeatability between batches. Consistent dimensions help ensure interchangeability, reduce installation adjustments, and support stable mechanical performance. In OEM production, CNC equipment allows manufacturers to maintain controlled tolerances even when multiple support configurations are required.

5.4 Insulating Component Production

DMC and SMC insulating parts are produced using controlled molding processes. The molding temperature, pressure, material formulation, curing time, and mold condition all affect the final product. Inadequate curing may reduce mechanical or electrical performance, while excessive molding stress may affect dimensional stability.

After molding, the insulating support is inspected for cracks, voids, flash, deformation, surface contamination, and dimensional deviation. Critical insulation surfaces should be clean and free from defects that could promote tracking or partial discharge.

5.5 Surface Treatment

Steel parts undergo surface preparation before galvanizing or other protective treatment. Surface preparation may include cleaning, degreasing, pickling, fluxing, sandblasting, and passivation. These steps help ensure adhesion and uniformity of the protective coating.

Surface sandblasting can remove contaminants and improve coating consistency. Passivation and supplementary coating solutions may be applied when additional corrosion protection is required. The finished product should be inspected for coating thickness, coverage, adhesion, exposed steel, excessive runs, and damage around holes or threaded areas.

5.6 Automated Assembly

Automated assembly technologies improve consistency when the product includes multiple hardware pieces, insulating bodies, fasteners, damping wires, or terminal elements. Controlled assembly can help prevent incorrect orientation, missing components, uneven tightening, and variation in the final support position.

Where manual assembly is necessary, standardized work instructions and torque requirements should be used. Traceability records may include production batch, material lot, operator, inspection result, and final release status. These records are valuable for large projects and future maintenance.

6. Testing and Verification

Reliable bus-bar supports require more than visual inspection. Testing should address both the mechanical and electrical conditions that the support may experience in service.

6.1 Dimensional Inspection

Dimensional inspection verifies outer diameter compatibility, mounting-hole location, support height, clamp geometry, end-cap fit, and interface tolerances. Measuring tools may include coordinate measuring equipment, gauges, calipers, micrometers, and custom fixtures.

Dimensional control is particularly important for tubular busbars because even a small mismatch between the support and conductor can create uneven pressure. Excessive pressure may damage the conductor or insulation, while insufficient pressure may allow movement.

6.2 Coating Inspection

Coating thickness is measured at representative locations on galvanized steel components. Inspection should consider both broad surfaces and difficult areas such as recesses, edges, holes, and internal interfaces. A minimum zinc coating thickness of approximately 85 micrometers is specified for the described hardware.

Visual inspection is also necessary to identify bare areas, blistering, peeling, excessive roughness, or contamination. If a component is cut, drilled, or damaged after galvanizing, the exposed area should be treated according to an approved repair procedure.

6.3 Mechanical Load Testing

Mechanical tests evaluate the support’s ability to withstand static and dynamic loads. The test arrangement should reproduce the actual load path as closely as possible, including the conductor interface, fasteners, mounting frame, and support spacing.

For tension clamps, grip-strength testing verifies that the clamp can resist conductor movement under the specified load. The applicable grip-strength range is approximately 45 to 187 kilonewtons depending on the model and conductor size.

For fixed supports, mechanical testing may include pull-out force, compression, lateral force, bending, and impact loading. Reinforced models should be evaluated at the higher loads for which they are intended.

6.4 Short-Circuit Verification

Short-circuit testing or validated calculation confirms that the support can resist electromagnetic forces created during a fault. The test should consider fault duration, peak current, conductor arrangement, support spacing, fastening method, and the behavior of neighboring phases.

A support can only be considered adequate when the complete arrangement is evaluated. The strength of the support body alone is insufficient if the bolts, mounting frame, conductor interface, or enclosure cannot withstand the same event.

6.5 Insulation and High-Voltage Testing

Insulating components may be subjected to insulation resistance tests, dielectric withstand tests, and, where applicable, partial-discharge evaluation. The stated insulation resistance performance can exceed 1.0 × 10¹² ohms for relevant support designs, while humid and hot conditions are specified to maintain insulation resistance above 1.0 × 10⁴ megaohms.

High-voltage testing helps verify that the support does not create an unintended flashover path. It also helps identify defects in molded insulation, contamination on the surface, inadequate clearances, or unfavorable electric-field concentrations.

6.6 Environmental Testing

Salt spray testing, ultraviolet aging, temperature cycling, humidity testing, and vibration testing provide information about long-term durability. The described product family references up to 3,000 hours of salt spray testing and up to 2,000 hours of ultraviolet aging.

Environmental tests should be interpreted together with the intended installation environment. A laboratory test cannot reproduce every field condition, but it can provide a controlled comparison between materials, coatings, and design options.

7. Applications in Power Distribution and Transmission

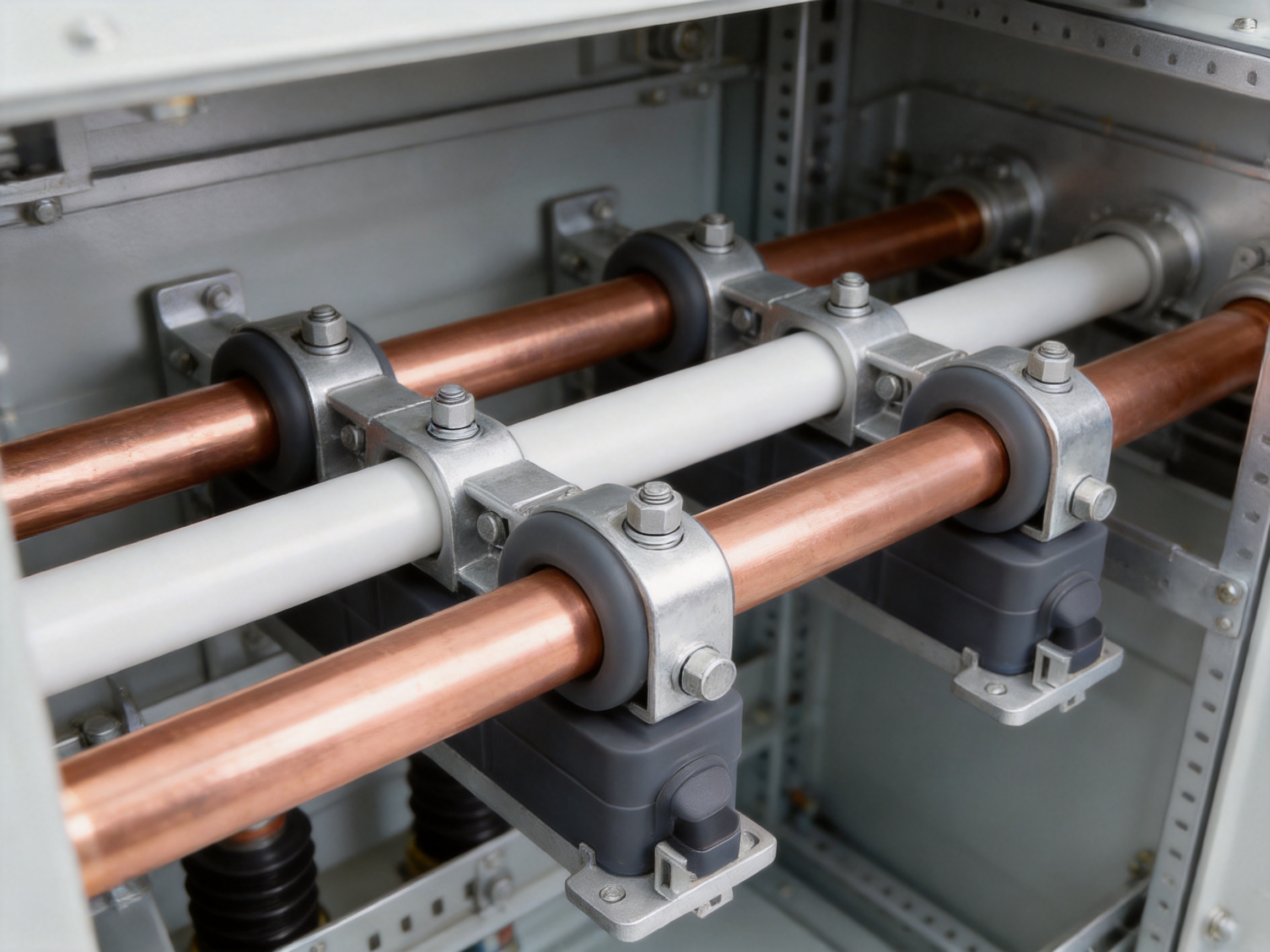

7.1 Low-Voltage Switchgear

In low-voltage switchgear and distribution cabinets, fixed bus-bar supports maintain the position of copper or aluminum conductors and preserve safe separation between phases. They are used in main incoming sections, coupling sections, outgoing feeder sections, and compact distribution assemblies.

The support must fit within the enclosure and should not interfere with cable termination, inspection, ventilation, or access to bolted joints. Flame-retardant insulating materials such as DMC and SMC are commonly selected for these applications.

7.2 Medium-Voltage Switchgear

Medium-voltage systems require greater attention to insulation distance, electric-field distribution, partial discharge, and mechanical stability. Fixed supports help control the geometry of tubular busbars and keep energized parts away from grounded structures.

In systems up to approximately 35 kilovolts, the support design should be selected according to the actual insulation coordination and equipment standards. The stated voltage range is a general product application range, and final suitability must be verified against the project’s rated voltage, impulse withstand level, pollution degree, and enclosure design.

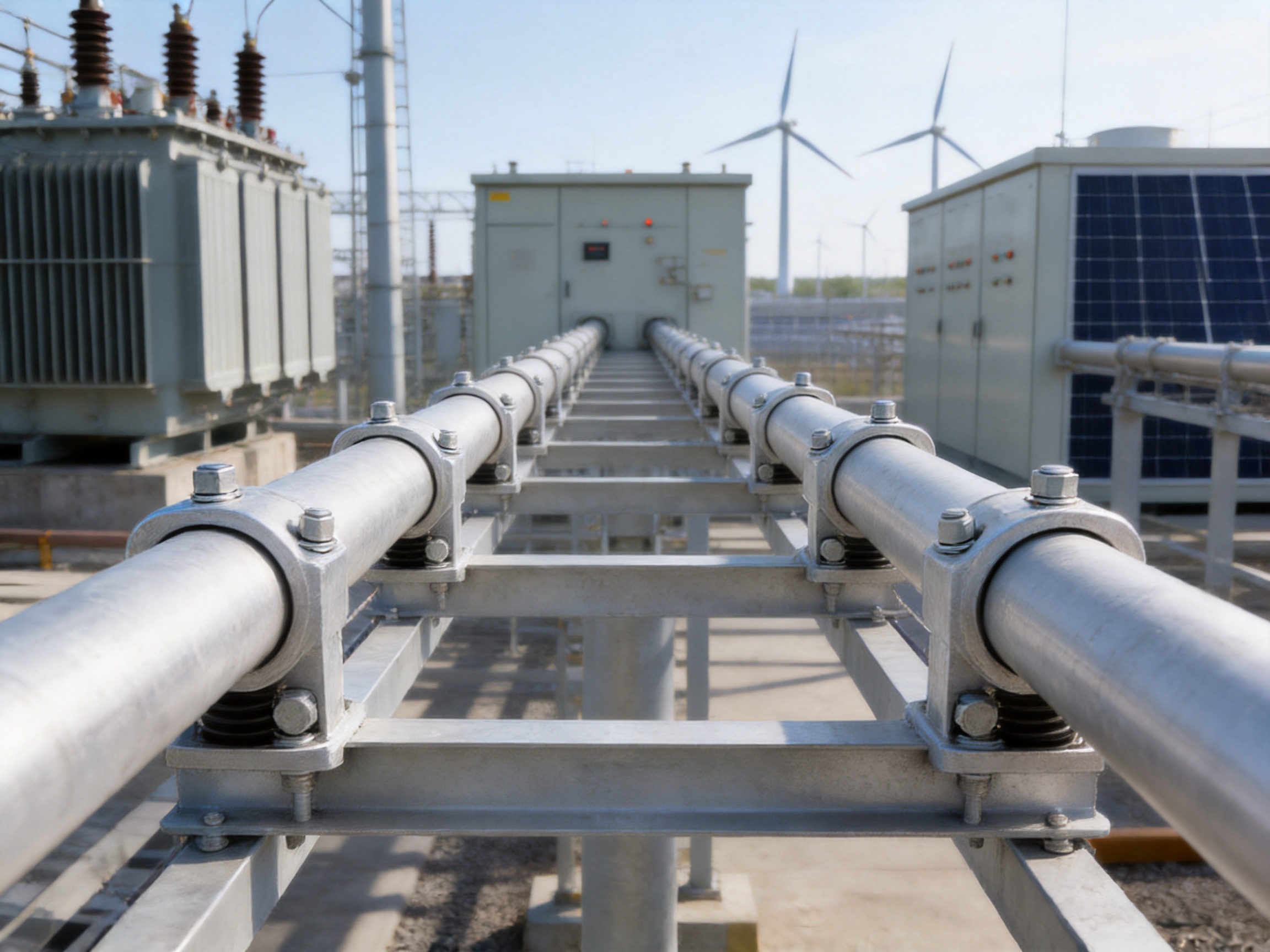

7.3 Transformer Stations and Substations

Transformer stations and substations often use tubular busbars to connect transformers, switchgear, disconnectors, and other high-current equipment. These systems may include indoor and outdoor sections, changes in elevation, long spans, and different mechanical loading conditions.

Fixed supports provide stable connection points along the busbar route. Reinforced supports can be used near equipment terminals, direction changes, expansion sections, and areas where short-circuit forces are expected to be higher.

7.4 Renewable Energy Equipment

Wind power and renewable energy installations require reliable current collection and grid connection equipment. Wind turbines may experience continuous vibration, cyclic loading, temperature changes, moisture, and difficult maintenance access. Tubular busbars and damping accessories can be used where a compact and robust current path is required.

In solar and energy-storage facilities, fixed supports may be installed in combiner equipment, inverter connection cabinets, transformer interfaces, and medium-voltage collection systems. Environmental protection and proper thermal design are especially important in these applications.

7.5 Industrial Manufacturing Facilities

Industrial plants often use high-current distribution systems for furnaces, motors, cranes, compressors, welding equipment, and process machinery. These loads can create high thermal stress and may produce electrical disturbances or mechanical vibration.

A fixed bus-bar support system helps maintain conductor alignment and supports reliable operation under continuous industrial loading. The ability to select standard or reinforced models makes it easier to adapt the system to different current levels and mechanical conditions.

7.6 Rail Transit and Large Commercial Facilities

Rail transit systems, stations, shopping centers, data facilities, and large commercial buildings require compact, safe, and maintainable power distribution equipment. Space constraints may make tubular or compact busbar systems attractive.

In these applications, support selection should consider fire performance, smoke requirements, maintenance access, installation speed, and coordination with the building structure. Consistent dimensions and OEM customization can simplify integration into prefabricated electrical assemblies.

8. Advantages Compared with Conventional Support Solutions

8.1 Better Integration with Tubular Busbars

Generic brackets may not provide the correct contact shape for a tubular conductor. A support designed specifically for tubular busbars can distribute the clamping force more evenly and reduce the risk of local deformation. It can also provide more predictable alignment and clearance control.

The Type MGG product family is developed around defined tubular busbar diameters rather than relying on improvised adaptation. This improves installation consistency and reduces the likelihood of excessive gaps, uneven contact, or field modifications.

8.2 Improved Mechanical Reserve

Low-cost support solutions may be designed primarily for static weight and may not include adequate reserve for fault forces or fatigue. The described fixed hardware uses structural analysis, reinforced versions, standardized mechanical parameters, and vibration-life evaluation to provide a more comprehensive design approach.

The advantage is not limited to a higher nominal load. A properly distributed load path can reduce stress concentration, improve fastener reliability, and maintain the original geometry after repeated loading.

8.3 More Durable Corrosion Protection

Painted or untreated steel hardware may deteriorate quickly in humid, coastal, or industrial environments. Hot-dip galvanized components with controlled coating thickness offer a more durable baseline protection system. Additional anti-corrosion solutions can be considered for special regions.

Longer corrosion life can reduce maintenance frequency, preserve mechanical strength, and lower the risk of difficult removal during future replacement work.

8.4 Coordinated Accessory Range

A complete product family that includes fixed hardware, end caps, damping accessories, tension clamps, and conductor supports provides an advantage over purchasing unrelated components from several suppliers. A coordinated range improves dimensional compatibility and simplifies technical communication.

It also allows the manufacturer to evaluate the complete busbar assembly. The support, conductor, end cap, clamp, insulation structure, and mounting frame can be considered together instead of being treated as independent parts.

8.5 OEM and Custom Engineering Capability

Electrical equipment manufacturers often require customized hole patterns, support spacing, conductor diameters, connection details, or enclosure interfaces. A manufacturer with engineering and production capability can adapt the product while maintaining controlled quality.

Jiangsu Wopeng Power Technology operates production lines equipped with vacuum casting systems, CNC machining equipment, and automated assembly technologies. This combination supports both standardized products and tailored OEM solutions. It also enables the company to coordinate busbar manufacturing with support hardware production.

8.6 Broader System Expertise

A support supplier that also manufactures high- and low-voltage busbar systems can better understand the actual operating conditions of the accessory. Wopeng’s product portfolio covers systems from low voltage to 35 kilovolts, including epoxy resin vacuum-cast tube busbars, low-voltage cast resin busways, copper and aluminum tubular busbars, wind power tubular busbars, compact busbar systems, and sliding contact line systems.

This system-level experience can improve the technical selection of support materials, clearances, damping solutions, connection methods, and environmental protection measures.

9. How to Select the Correct Fixed Bus-Bar Support

9.1 Confirm the Busbar Diameter

The first selection parameter is the outer diameter of the tubular busbar. The support must match the conductor size within the manufacturer’s specified range. For Type MGG fixed hardware, the applicable outer diameter range is approximately 50 to 180 millimeters.

For end caps, both inner and outer diameters should be confirmed. A stated range from approximately 50/45 millimeters to 250/230 millimeters indicates that the internal and external dimensions must be considered together.

9.2 Confirm Voltage and Insulation Requirements

The rated voltage affects insulation distance, support material, surface design, and electric-field control. Standard applications may range from 0.4 kilovolts to 35 kilovolts, but the final selection must be based on the actual equipment design and applicable standards.

Pollution degree, altitude, humidity, condensation, and enclosure conditions may require additional creepage distance or special insulation treatment. The support should not be selected solely by voltage label without reviewing the entire insulation coordination design.

9.3 Calculate Mechanical Loads

Mechanical calculations should include the conductor’s weight, the span between supports, installation orientation, equipment vibration, thermal movement, wind exposure where applicable, and short-circuit forces. The expected peak fault current and fault duration are particularly important.

Standard support models may be suitable for ordinary loads, while reinforced models may be required for heavy busbars, long spans, higher fault levels, or sensitive equipment connections. The mounting frame and fasteners must be checked along with the support.

9.4 Evaluate the Environment

Indoor clean environments may require only standard protection. Coastal, chemical, humid, dusty, outdoor, or high-ultraviolet locations may require enhanced corrosion protection and carefully selected insulating materials.

Temperature cycling from approximately -40°C to 60°C is referenced for the product family. If the actual installation exceeds this range or involves rapid thermal transients, the manufacturer should be consulted regarding material compatibility and expansion behavior.

9.5 Select the Correct Accessory Combination

The fixed support may need to be combined with end caps, damping wires, tension clamps, flexible connectors, expansion arrangements, or additional bracing. The accessory combination should reflect the complete mechanical and electrical design.

Damping accessories are useful where vibration or seismic performance is important. Terminal-ball end caps may be selected for specific termination arrangements. Tension clamps are appropriate for steel strands and should be matched to the conductor diameter and required grip strength.

9.6 Review Documentation and Testing

A professional supplier should provide product drawings, material information, dimensional data, mechanical parameters, inspection records, and relevant test reports. For customized projects, the documentation should clearly identify the approved revision and applicable operating conditions.

Engineering review is especially important for medium-voltage and high-current systems. The purchaser should confirm that the product’s test conditions correspond to the installation’s actual requirements.

10. Installation and Maintenance Recommendations

10.1 Installation Preparation

Before installation, inspect the support, conductor, fasteners, insulation surfaces, and protective coatings. Confirm that the product code, diameter range, and support orientation match the approved drawings.

Do not install components that show cracks, deformation, severe coating damage, contamination, or missing parts. Tubular busbar surfaces should be clean and free from burrs or sharp projections that could damage an insulating interface.

10.2 Alignment and Spacing

Install supports according to the designed spacing and maintain the specified phase-to-phase and phase-to-ground clearances. The conductor should be aligned without forced bending or twisting at the support.

Improper alignment may create additional stress, uneven clamping pressure, or reduced insulation distance. Laser alignment tools, templates, and controlled measurement procedures can improve installation accuracy on long busbar routes.

10.3 Fastener Tightening

Fasteners should be tightened according to the approved torque values and installation instructions. Over-tightening may damage the conductor, insulating body, or threads. Under-tightening may allow movement, loosening, or increased contact resistance.

Where vibration is expected, suitable locking methods should be used. The chosen locking method must be compatible with the electrical and environmental requirements of the assembly.

10.4 Inspection After Energization

After commissioning, inspect accessible support locations for abnormal movement, discoloration, overheating, vibration, or signs of mechanical contact. Thermal imaging can help identify abnormal heating at conductive interfaces, although the support itself should also be visually checked.

Any unusual noise, odor, partial discharge indication, or repeated fastener loosening should be investigated promptly. The cause may involve incorrect alignment, excessive current, inadequate clearance, poor contact, or resonance.

10.5 Periodic Maintenance

Maintenance intervals depend on the installation environment and equipment criticality. Outdoor and corrosive environments generally require more frequent inspection than clean indoor rooms. Maintenance may include cleaning, checking support tightness, examining galvanizing, measuring clearances, and verifying the condition of insulating surfaces.

If corrosion or coating damage is found, the affected area should be evaluated according to the manufacturer’s repair recommendations. Components with cracks, permanent deformation, severe corrosion, or electrical tracking should be replaced rather than repaired without technical approval.

11. Manufacturing Strengths of the Supplier

Jiangsu Wopeng Power Technology Co., Ltd. was founded in 2018 as a specialized high-tech enterprise focused on the development and manufacture of high- and low-voltage busbar systems. Its engineering and manufacturing capabilities support applications in power generation, substations, wind energy, industrial production, rail transit, and large commercial facilities.

The company combines product development, material selection, manufacturing, testing, and technical support. This integrated approach is valuable for bus-bar supports because the correct performance of a support depends on its relationship with the busbar, enclosure, connection hardware, and operating environment.

Its production resources include vacuum casting systems for epoxy resin products, CNC machining equipment for precision metal parts, and automated assembly technologies for consistent product integration. Standardized high-voltage tests, insulation tests, mechanical verification, and routine quality inspections are used to support product reliability.

Testing cooperation with third-party institutions provides an additional level of independent performance validation. This is useful for project owners and equipment manufacturers that require documentation for design approval, procurement, factory acceptance, or regulatory review.

Wopeng products are used across more than 17 provinces and multiple industrial sectors. This field experience helps the company understand different installation environments and practical engineering requirements. It also supports the development of customized OEM solutions for customers that need a specific busbar diameter, support arrangement, connection design, or system configuration.

The company’s broader product portfolio includes 35-kilovolt epoxy resin vacuum-cast tubular busbars, low-voltage epoxy-cast busbar trunking, copper and aluminum tubular busbars, wind power tubular busbars, compact busbar systems, and sliding contact line power supply systems. This product coverage enables customers to source related power distribution products from one experienced manufacturer.

12. Why System-Level Design Matters

Bus-bar supports should be evaluated as part of the complete busbar system. A support may have excellent individual mechanical strength but still be unsuitable if the conductor diameter is incorrect, the mounting frame is weak, the phase spacing is insufficient, or the electrical clearances are not maintained.

System-level design considers the interaction between the conductor, support, enclosure, connection joint, expansion arrangement, damping method, and grounding structure. It also considers installation tolerances and the possibility of maintenance access or future replacement.

For tubular busbars, the support position may influence the conductor’s natural frequency and vibration response. The support spacing may influence bending stress and short-circuit displacement. The end-cap selection may influence sealing and vibration behavior. The material combination may influence corrosion at interfaces.

A manufacturer with experience in complete busbar systems can identify these interactions during the design stage. This may prevent field modifications, reduce commissioning delays, and improve the long-term reliability of the equipment.

13. Frequently Asked Questions

Q1: What is a fixed bus-bar support?

A fixed bus-bar support is a mechanical and electrical support component that holds a busbar at a defined position. It maintains conductor spacing, provides structural fixation, and helps the busbar resist vibration and short-circuit forces.

Q2: Which tubular busbar diameters are compatible with Type MGG fixed hardware?

Type MGG fixed hardware is designed for tubular busbar outer diameters from approximately 50 millimeters to 180 millimeters. The exact model should be selected according to the approved product drawing and actual conductor dimensions.

Q3: What is the difference between standard and reinforced fixed hardware?

Standard hardware is intended for ordinary mechanical conditions. Reinforced hardware provides greater mechanical stability for heavy conductors, long support spans, high short-circuit forces, stronger vibration, or other demanding operating conditions.

Q4: What materials are used for bus-bar supports?

Insulating support bodies are commonly made from DMC or SMC composite materials. Mechanical hardware such as brackets and clamps may be manufactured from hot-dip galvanized steel. The final material combination depends on voltage, mechanical load, temperature, and environmental requirements.

Q5: Are the supports suitable for medium-voltage systems?

They can be used in low-voltage and medium-voltage power distribution systems, including applications up to approximately 35 kilovolts when the complete design satisfies the required insulation coordination, clearances, testing, and applicable standards.

Q6: How do bus-bar supports withstand short-circuit forces?

The support system uses appropriate structural geometry, material strength, fastening methods, and support spacing to resist electromagnetic forces. Finite element analysis and mechanical testing can be used to verify stress distribution and load capacity. The complete assembly, including the mounting frame and fasteners, must be evaluated.

Q7: Can the supports be used outdoors?

They can be applied in suitable outdoor installations when the selected material and protective coating match the environmental conditions. Hot-dip galvanized steel, passivation, and enhanced anti-corrosion solutions help improve outdoor durability. Coastal, chemical, and high-pollution locations may require additional protection.

Q8: What are Type MGF end caps used for?

Type MGF end caps seal the ends of tubular busbars. Standard, damping, and terminal-ball types are available for different installation requirements. Damping versions can include LGJ-series damping wires to improve resistance to vibration and seismic effects.

Q9: What is the grip-strength range of the tension clamps?

The tension clamps for steel strands provide grip strength from approximately 45 kilonewtons to 187 kilonewtons, depending on the clamp design and conductor diameter. They are available in integral forged and universal design types.

Q10: How should a fixed support be selected for a custom project?

The selection should consider tubular busbar diameter, rated voltage, rated current, short-circuit current, support spacing, conductor weight, installation environment, temperature, vibration, corrosion, insulation distance, and mounting structure. Product drawings and technical parameters should be reviewed before approval.

Q11: Are DMC and SMC supports flame retardant?

DMC and SMC composite materials are commonly formulated for flame-retardant electrical applications. The applicable grade should be confirmed through the supplier’s material and test documentation. Some support products are designed to meet UL94 V-0 requirements.

Q12: Can the manufacturer provide OEM bus-bar support solutions?

Yes. Customization may include conductor diameter, mounting-hole pattern, support dimensions, reinforced structure, insulating material, coating system, damping arrangement, and integration with a complete tubular busbar or busway system.

14. Conclusion

Fixed bus-bar supports are fundamental components for safe and stable tubular busbar systems. Their function extends beyond holding a conductor in place. They influence insulation coordination, short-circuit resistance, vibration behavior, thermal reliability, corrosion life, and the maintainability of the complete power distribution installation.

The described product family combines Type MGG fixed hardware, Type MGF end caps, tension clamps, and steel-cored aluminum strand supports to address a broad range of electrical and mechanical requirements. Compatibility with tubular busbar diameters from approximately 50 to 180 millimeters, standard and reinforced configurations, hot-dip galvanized steel construction, controlled coating thickness, vibration testing, mechanical analysis, and environmental verification provide practical advantages over basic or improvised support solutions.

Jiangsu Wopeng Power Technology strengthens these products through engineering design, vacuum casting, CNC machining, die forging, heat treatment, surface treatment, automated assembly, and standardized testing. Its experience with complete low-voltage and medium-voltage busbar systems allows the company to develop accessories that are coordinated with real operating conditions rather than designed as isolated hardware.

For equipment manufacturers, contractors, utilities, and industrial users, the best support solution is one that matches the conductor, electrical system, mechanical load, environment, and installation structure. With appropriate selection and professional installation, fixed bus-bar supports can contribute to reliable current transmission, reduced maintenance, improved operational safety, and a longer service life for modern tubular busbar systems.

References

1. GB 1179-83, Round Wire Concentric Lay Overhead Electrical Stranded Conductors.

2. UL 94, Standard for Tests for Flammability of Plastic Materials for Parts in Devices and Appliances.

3. IEC 61439, Low-Voltage Switchgear and Controlgear Assemblies.

4. IEC 62271, High-Voltage Switchgear and Controlgear.

5. IEC 60865, Short-Circuit Currents: Calculation of Effects.

6. General principles of hot-dip galvanizing for steel electrical hardware.

7. Engineering practices for tubular busbar mechanical support, insulation coordination, and vibration control.

8. Manufacturer technical data for Type MGG fixed hardware, Type MGF end caps, steel strand tension clamps, and tubular busbar support systems.

Product: Bus-bar Supports (Fixed Support Type)
